811059010861

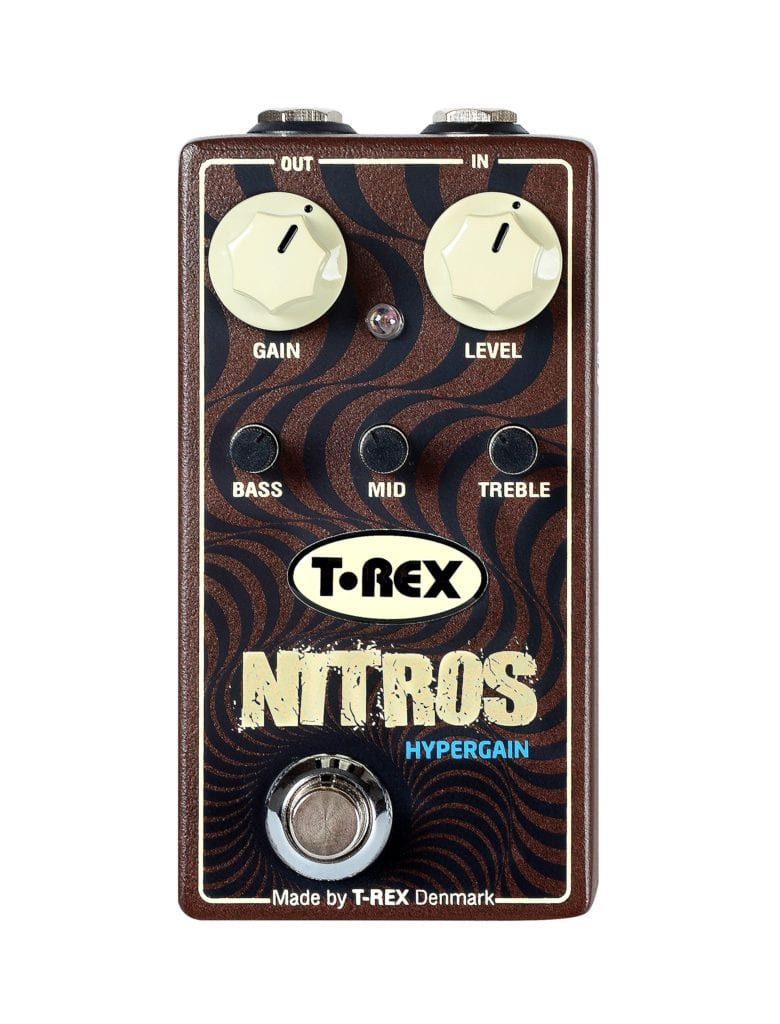

NITROS HYPERGAIN
Bold and aggressive clipping circuitry
Active 3-band EQ for extreme shaping of the voicing
Mid- to high gain with tightness and articulation
Fet-bypass for low switching noise and buffering capabilitie
TECH SPECS
Input impedance @ 1KHz Higher than 1M Ohm
Output impedance @ 1KHz Lower than 1K Ohm
Power supply 9V DC (T-Rex FuelTank)
Minimum power supply voltage 8V DC
Maximum power supply voltage 12,5V DC
Current draw @ 9V DC 30 mA
Maximum input signal V p-p 3V p-p
Battery type 9V battery 6F22
Battery life max. 5 hours
External connectors input jack, output jack, 9V DC jack
Controls on/off switch, gain, level, bass, mid, treble
Pedal size incl. knobs (W x H x D) 60 x 50 x 117 mm / 2,4 x 2 x 4,6 inch
Weight excl. packaging 0,20 kg / 7,05 oz
