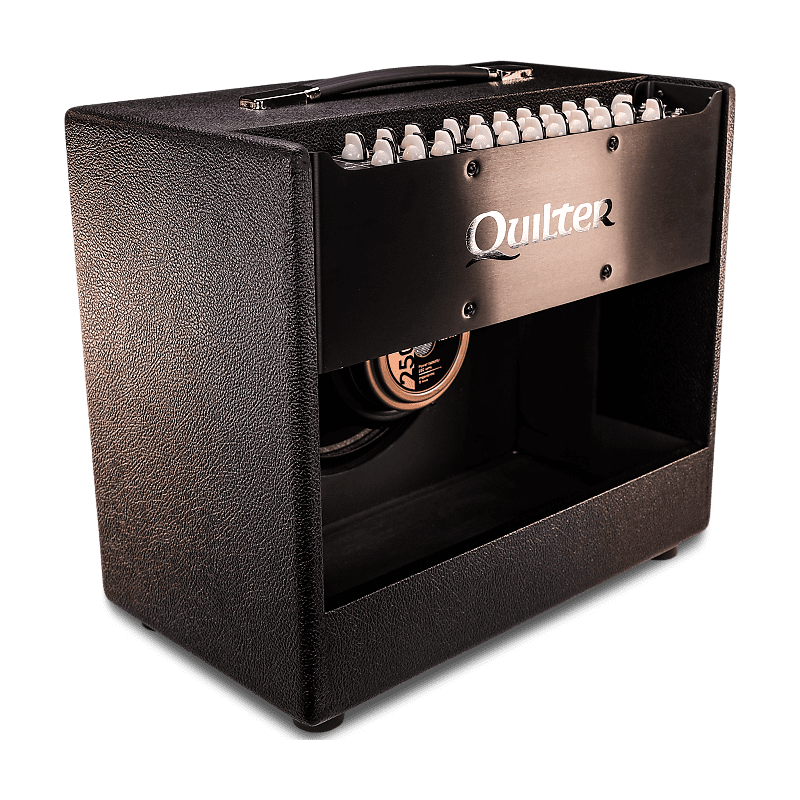

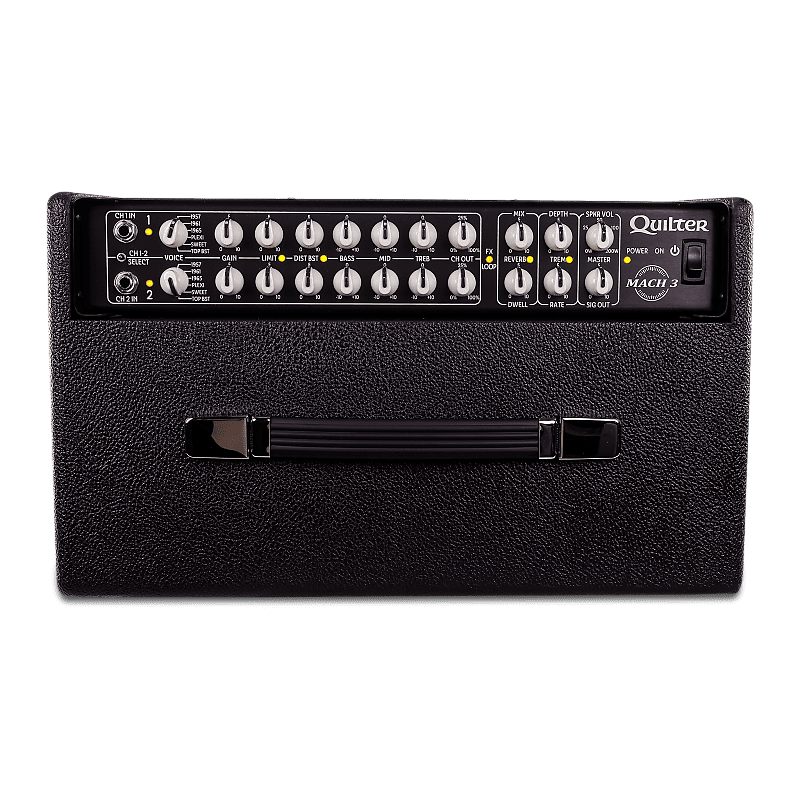

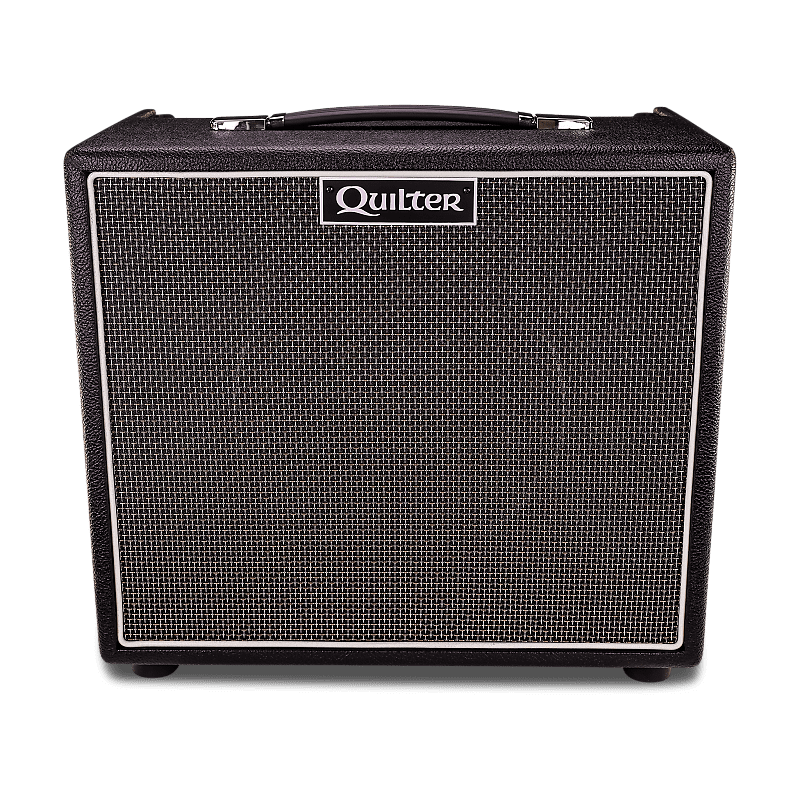

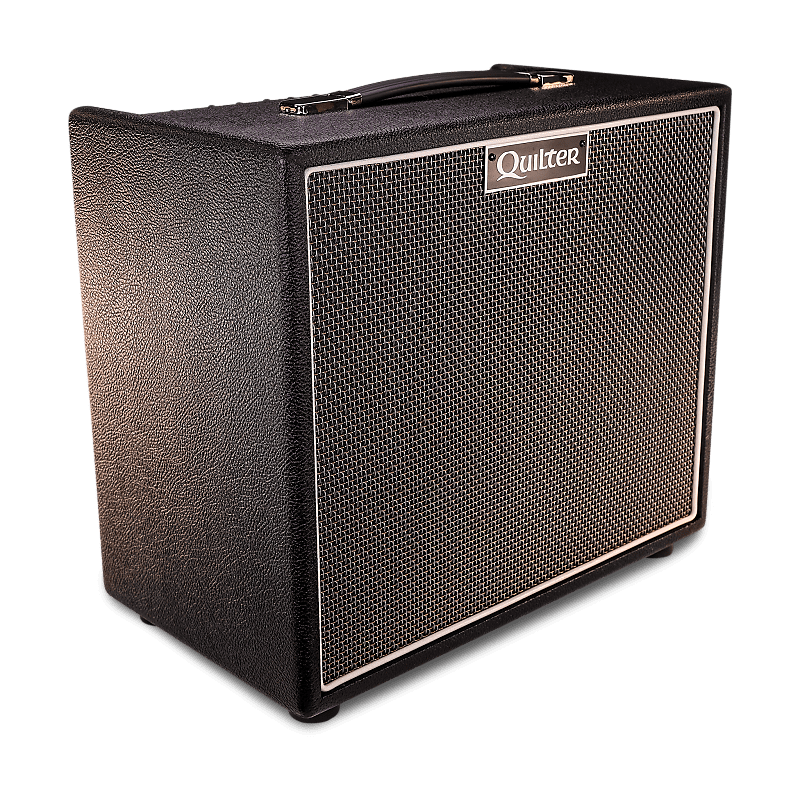

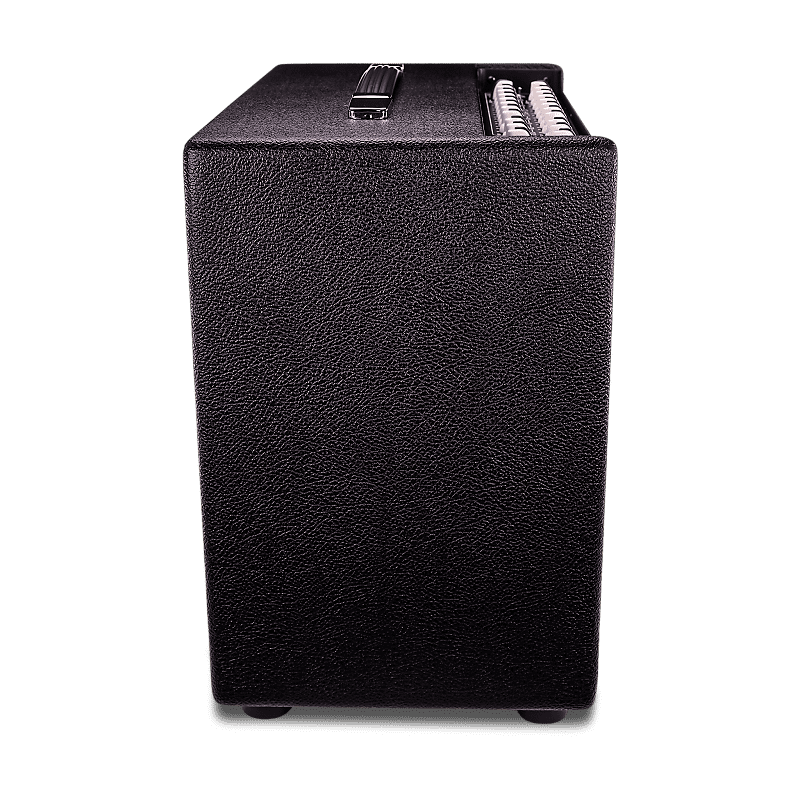

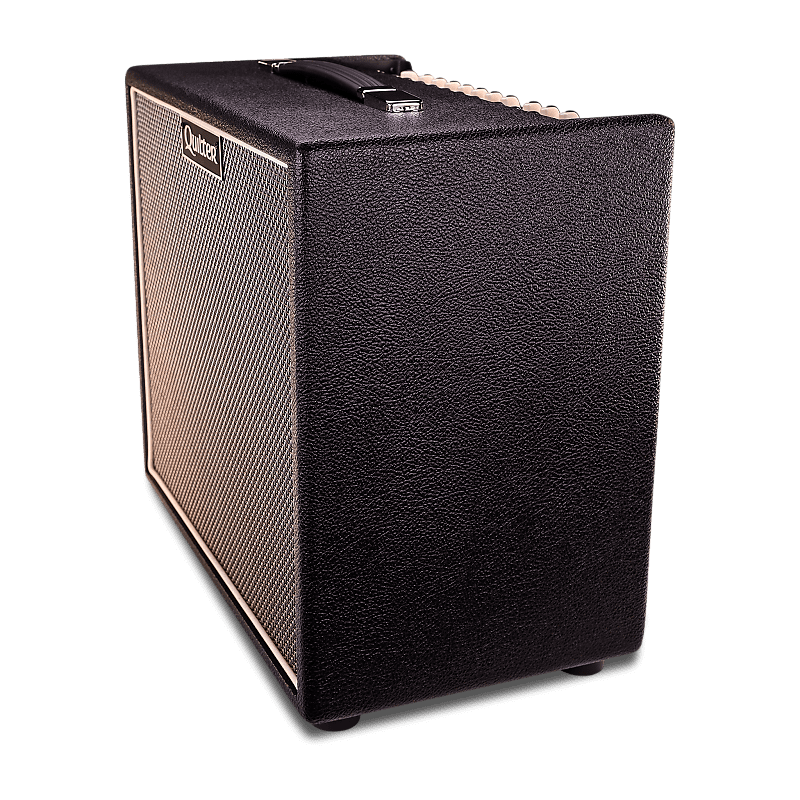

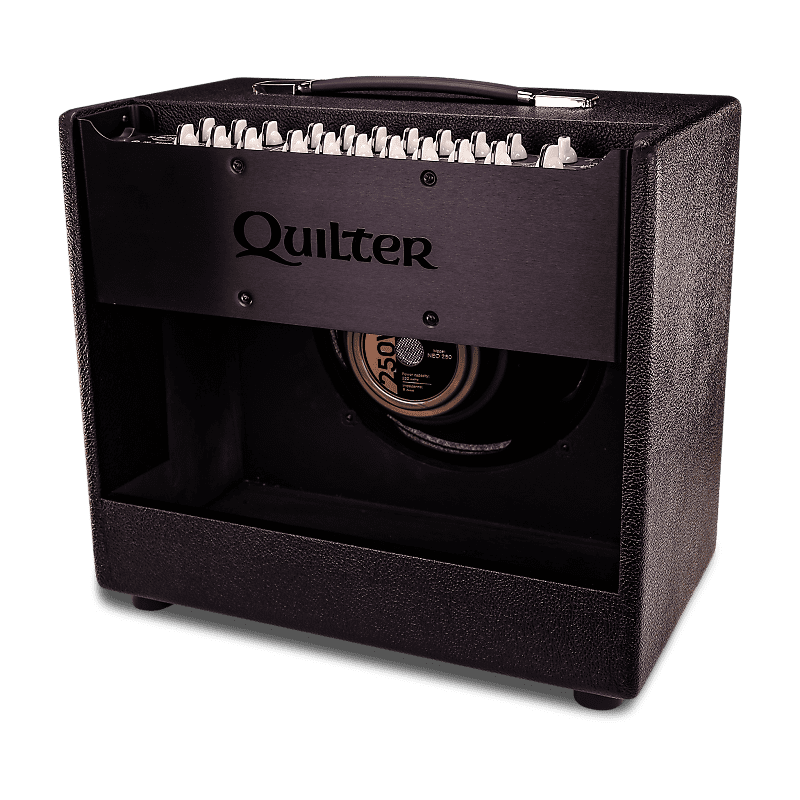

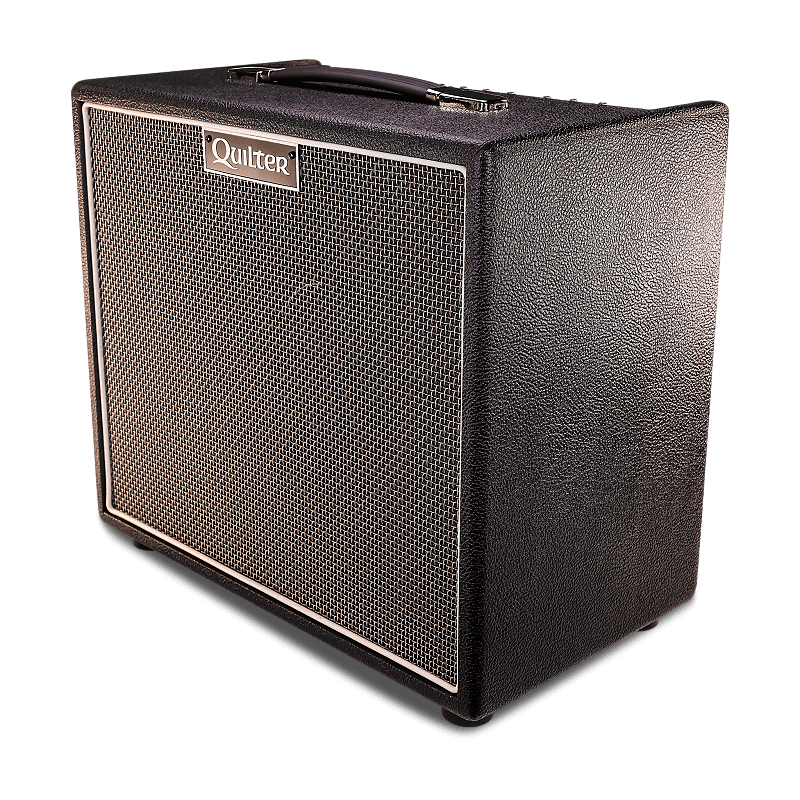

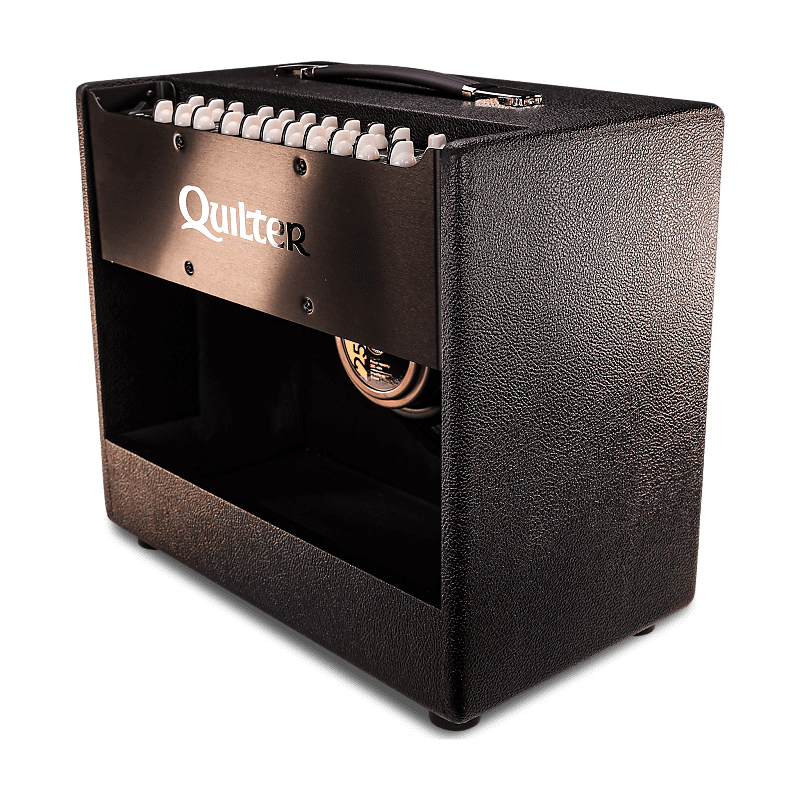

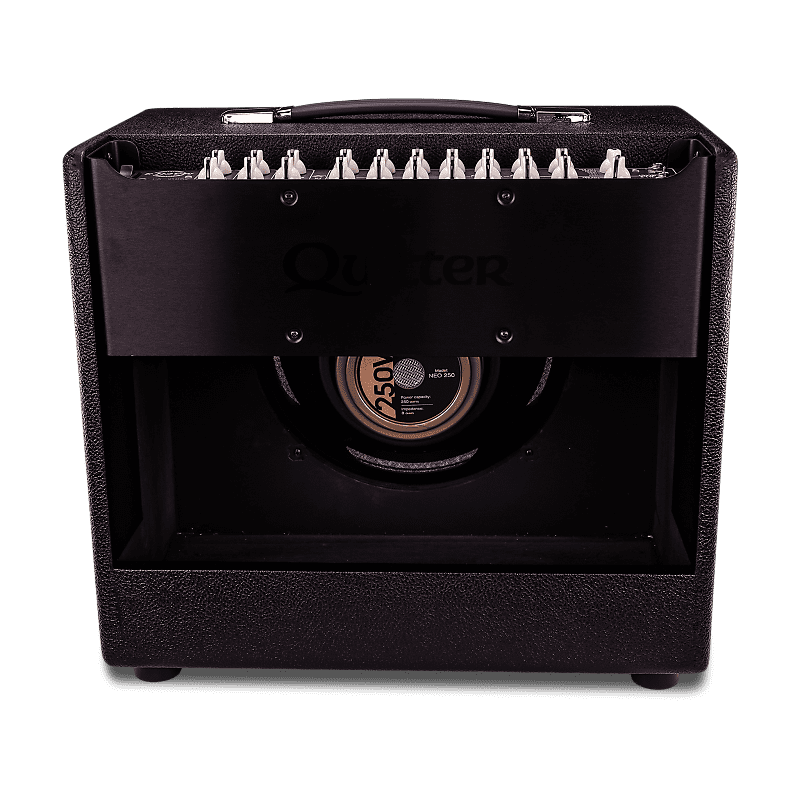

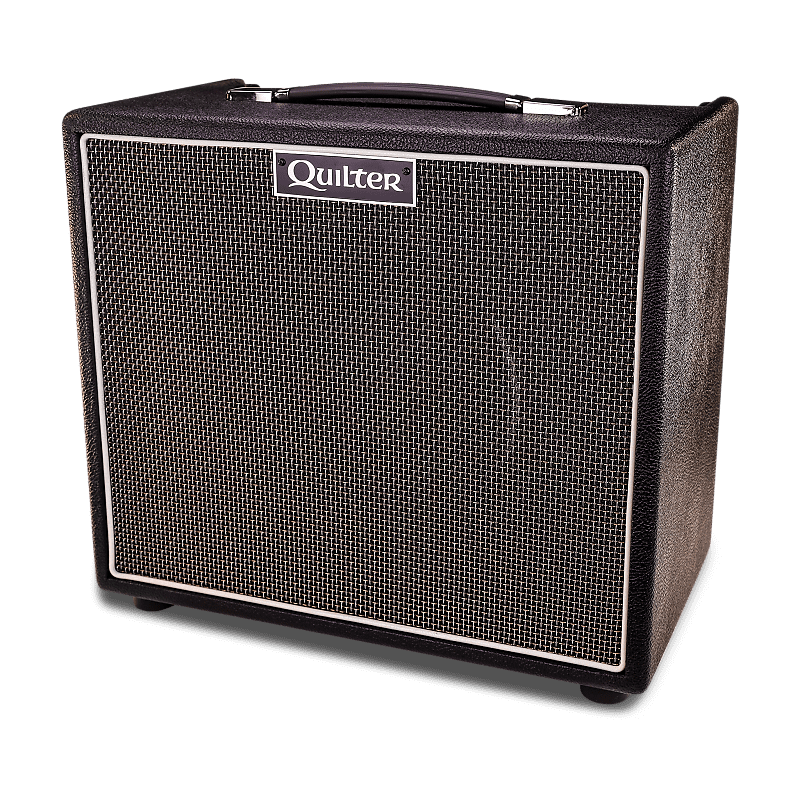

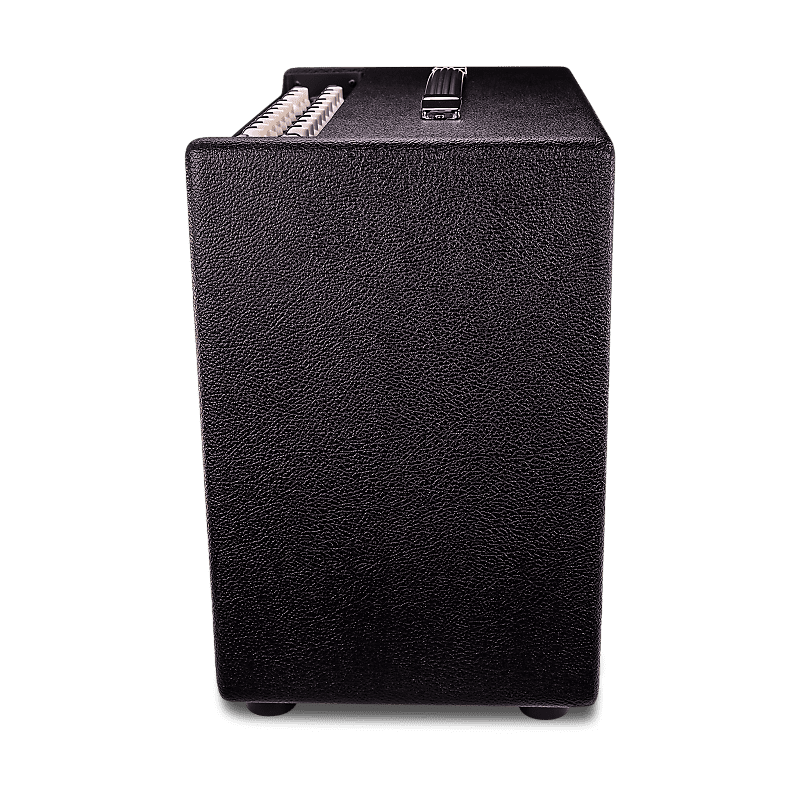

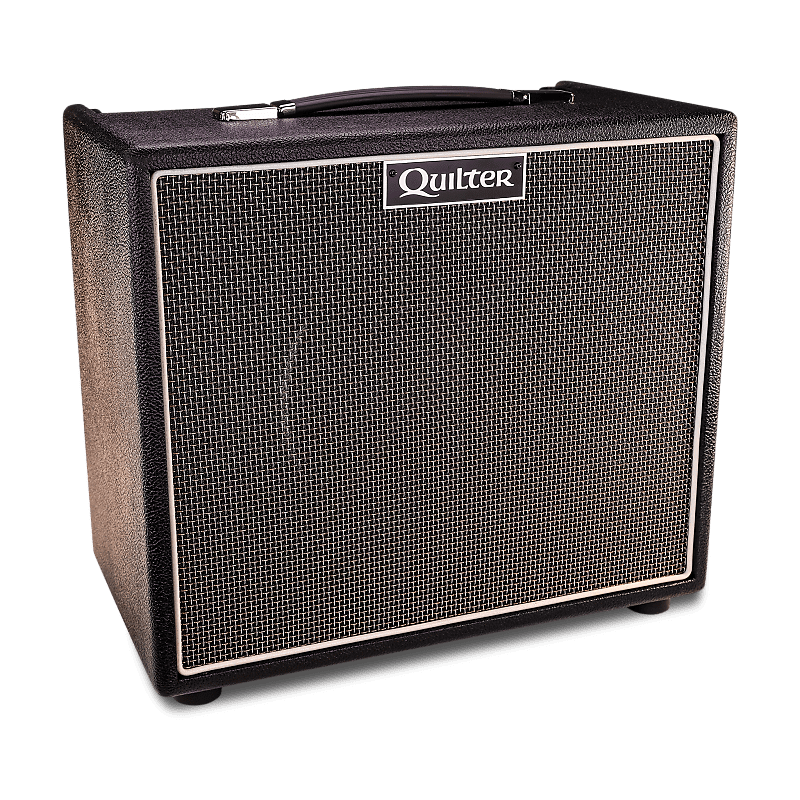

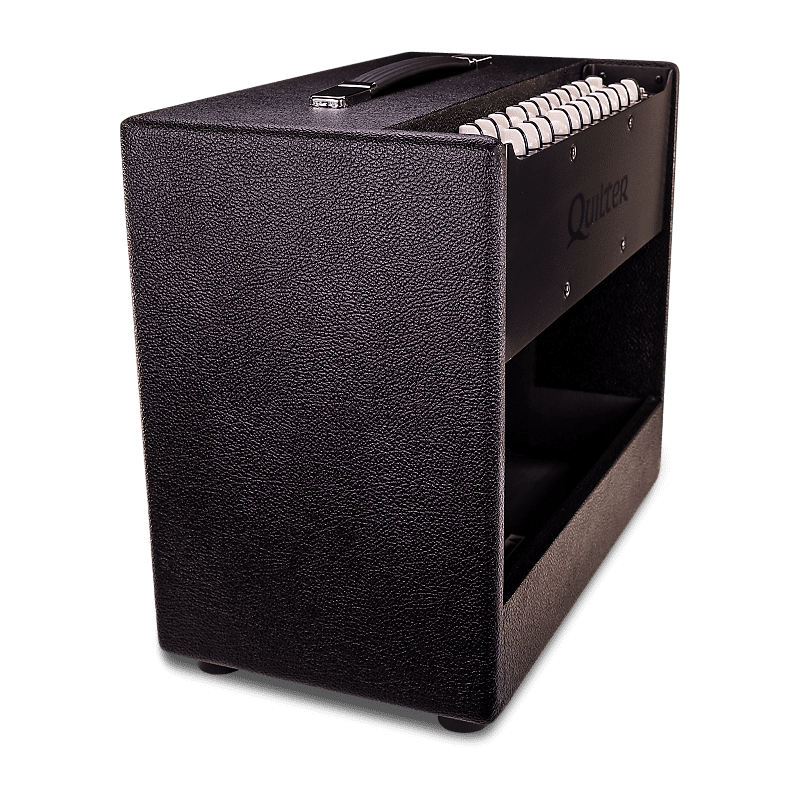

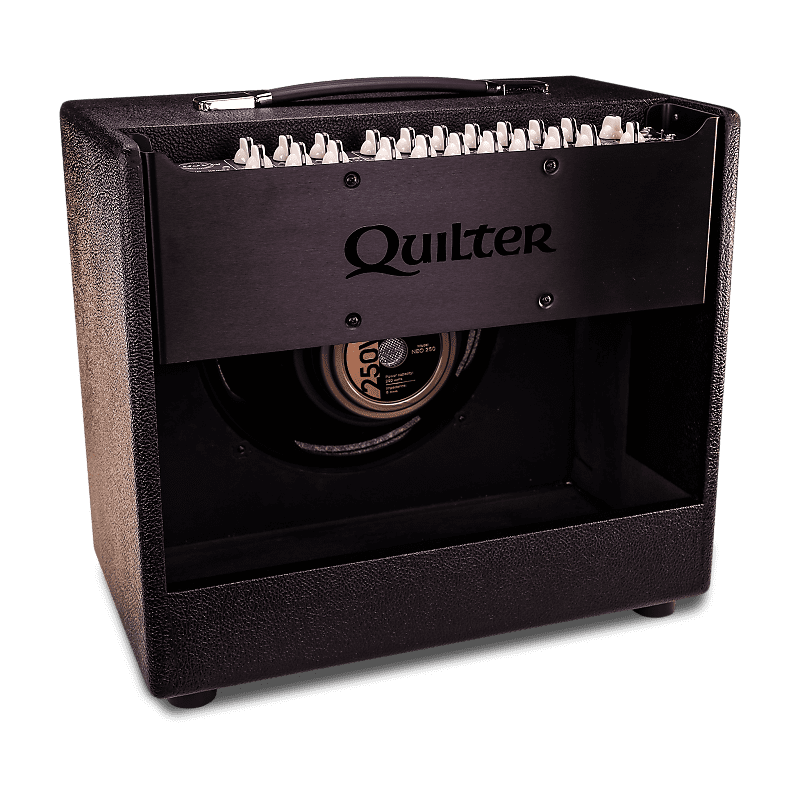

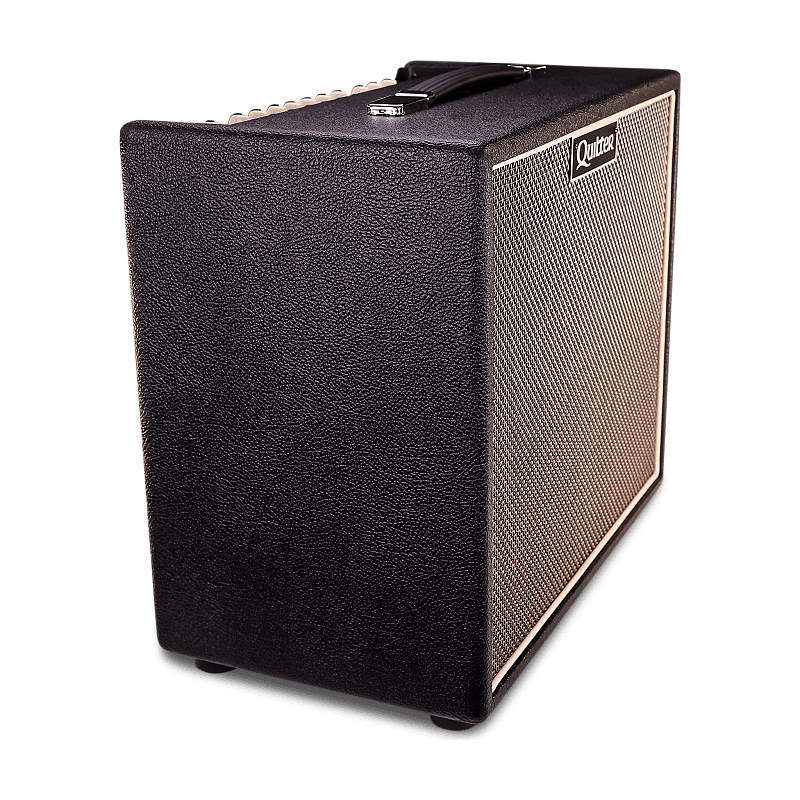

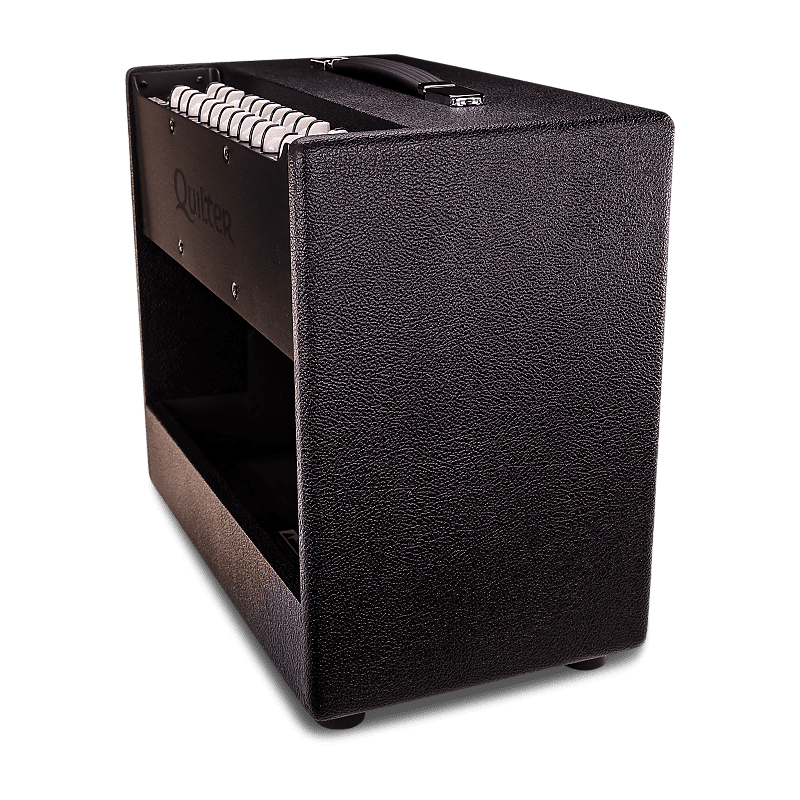

The Quilter Aviator Mach 3 represents the most lightweight and powerful two channel combo in the world today. Weighing in at a mere 21 Pounds it can handle up to a full 200 watts of tube-like power. The ultimate sleeper, choose the Mach 3 wherever you need supersonic power and tone and intend to use dual channels to their fullest extent. When your playing takes you beyond the ordinary airspace and into the stratosphere, you need an amplifier that can keep up with you. From the lightweight and powerful tonal articulation through the multiple amplifier models and professional features like separate mix out volume controls the Mach 3 is designed to be the ultimate performing guitarist's all in one toolbox.
SPECIFICATIONS
Title Specification
ELECTRONIC PERFORMANCE
INPUT
2 X ¼” Mono, 2 meg impedance, 1.5-5Vpk (depending on EQ)
FX LOOP
¼” mono, 1V full scale, 1K out, 47K inp (with FX Send lifted)
SIG OUT
¼” TRS, balanced line, 40 ohms each leg, 2V full scale
HEADPHONE (SIG OUT)
¼” TRS, 40 ohms each channel, 0-6Vpk (depending on SIG VOL)
SPEAKER OUT
0-200W (depending on SPKR VOL setting)
AC POWER
100-240Vac, 50-60Hz, 250W maximum
SPEAKER
Celestion Copperback 12 Inch Speaker.
DIMENSIONS
COMBO H x W x D Height: 17” (43.2cm) including feet & handleWidth: 18.4” (46.7cm) Depth: 10.6” (26.9cm)
WEIGHT
(COMBO)
21 lbs (9.5kg)
COVER
PROTECTIVE COVER

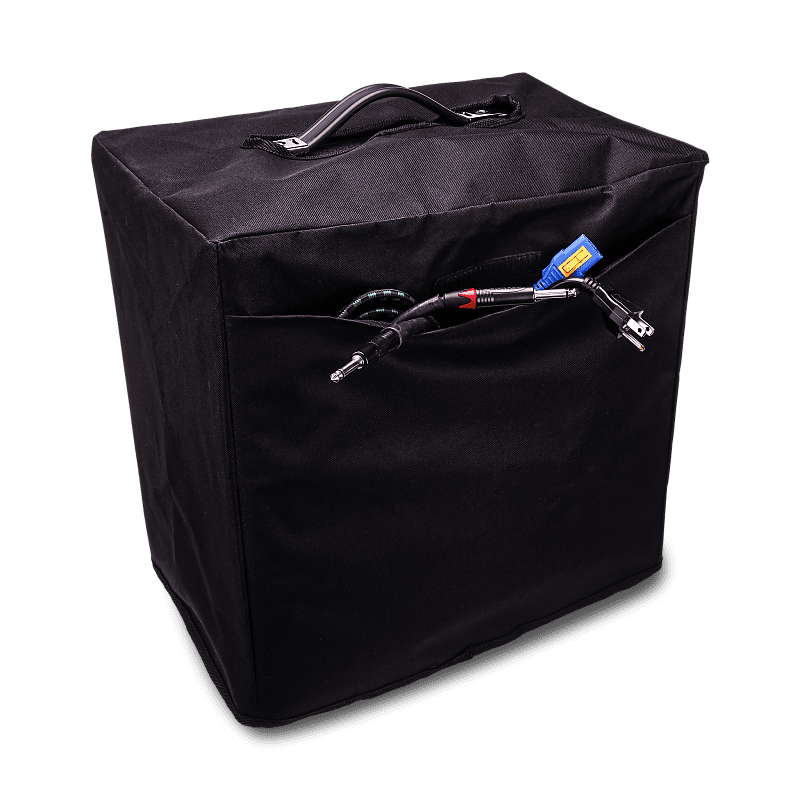

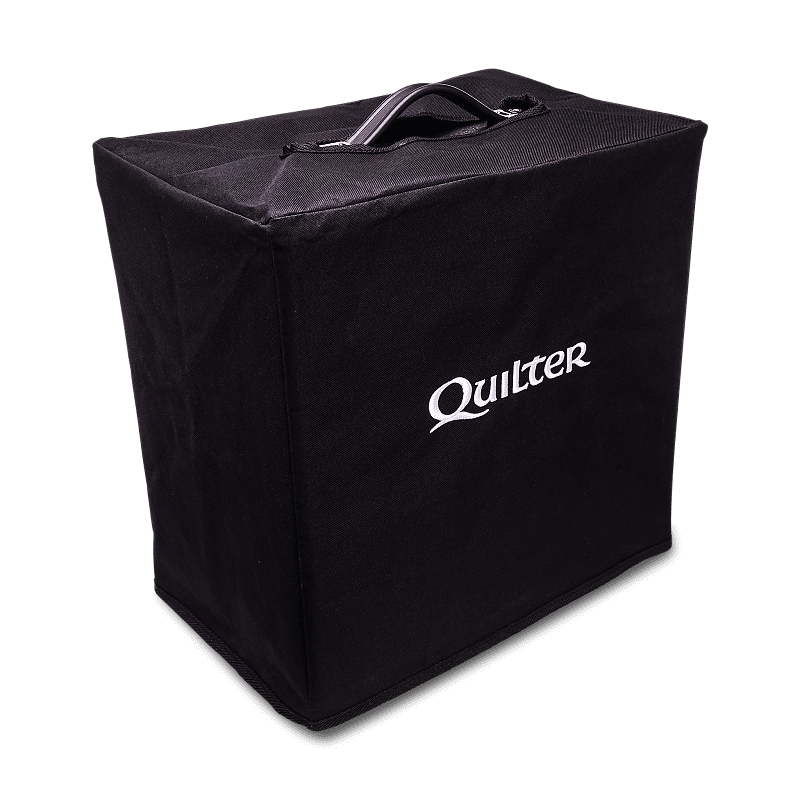

4mm Ballistic Nylon with carry pouch on rear
