PALMER PWT 06 - Universal 19" Rack Power Supply with 6 Outputs
Item highlights:
Palmer PWT 06 19" Multiple Power Supply
The Palmer PWT 06 is an extremely high-performance multiple power supply in 19" rack format with 6 isolated outputs, each of which delivers a maximum current of 1,000 mA (1A). It is the convenient and practical solution for powering wireless systems and eliminates the need for individual power adapters in power strips. The PWT 06 can power up to 12 wireless systems with DC current simultaneously, e.g., Sennheiser EM100G3, AKG 4500SET, Shure ULXP4, Line6 XDV75 or LD Systems products ranging from the LDMEI1000 to the LDWS1000R2 dual receiver.

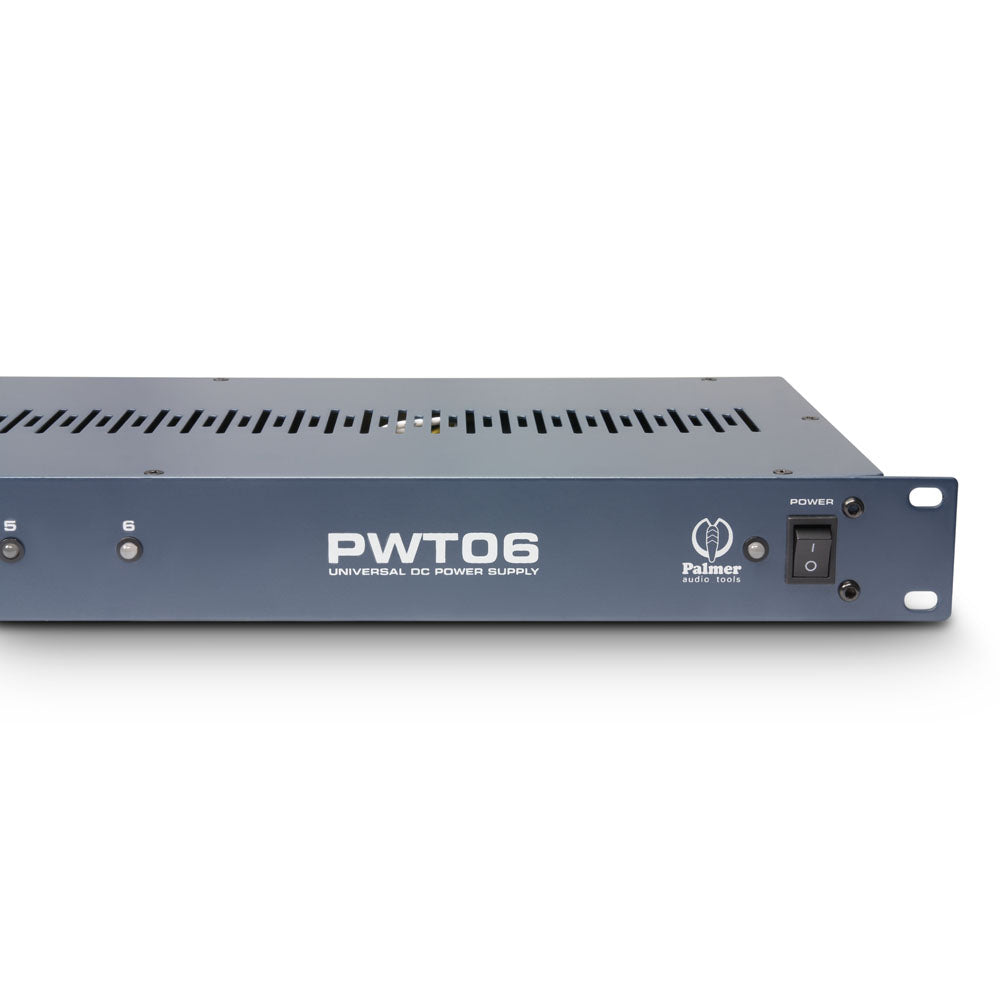

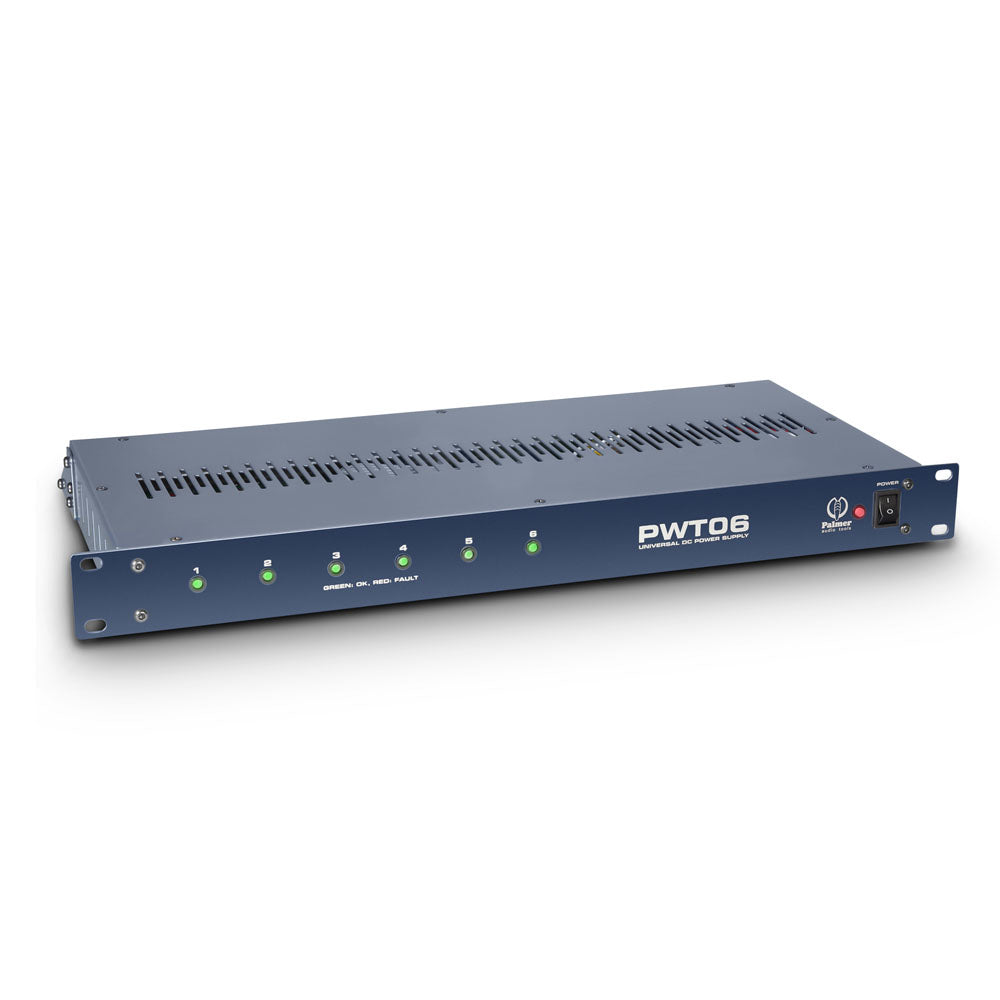

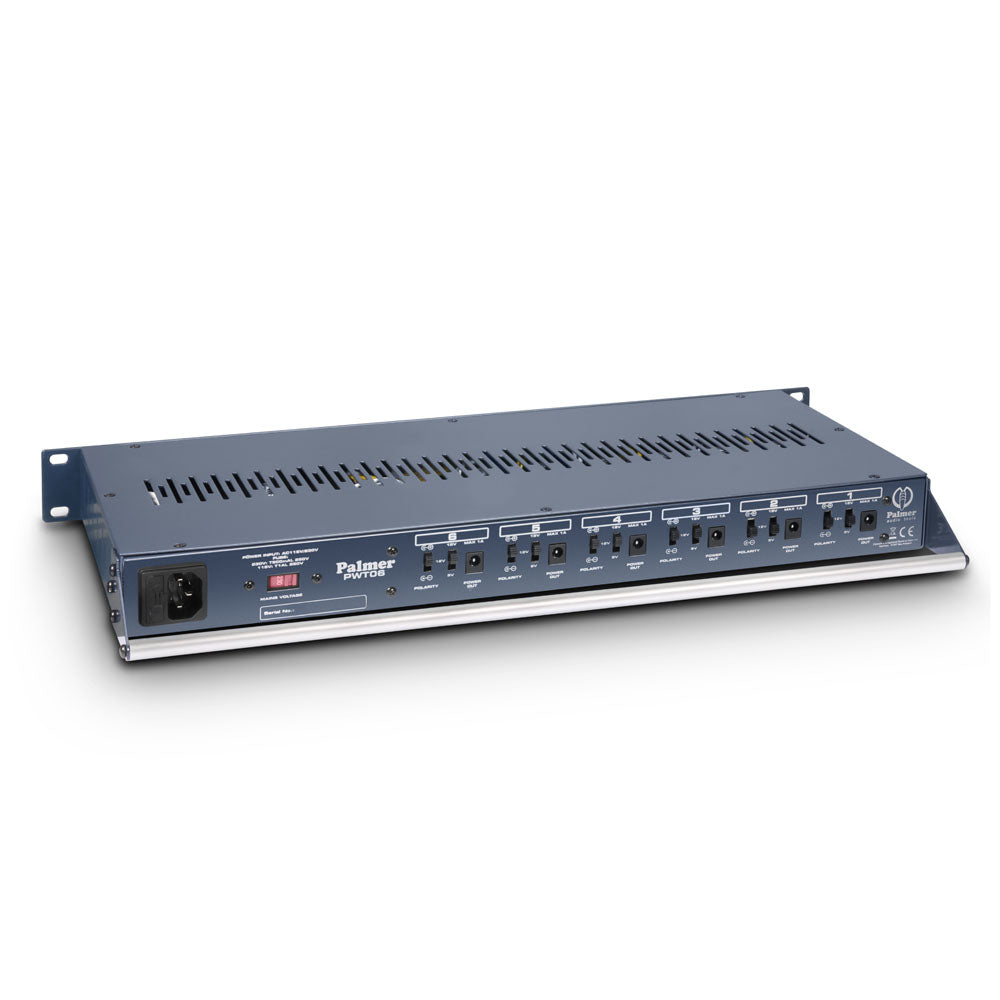

The polarity is individually adjustable for each of the rear panel outputs, as is the output voltage of 9, 12 or 18 VDC; connections are made via 5.5 x 2.1 mm power sockets and 6 included DC cables. The PWT 06 package includes six Y-cables for supplying power to two devices via one output as well as a strain relief bar that can be used to secure the cables. Two-coloured indicator LEDs on the front panel of the PWT 06 for all outputs clearly show correct functioning or a possible malfunction.
Specifications
General
Product type
Power Supplies
Mains connector
IEC mains cord
Input voltage
115 - 250 V
Outputs
6
Output connectors
2.1 x 5.5 mm
Output voltage
12 V, 18 V, 9 V
Max. output current
1000mA per output A
Isolated outputs
Yes
Polarity
Switchable
Cord length
100 cm
Indicators
6 x status LED, Power
Controls
voltage selector switch, Voltage, Polarity
Width
480 mm
Depth
210 mm
Height
45 mm
Weight
4,7 kg
Features
6x long DC cable and 6x Y cable included
