Amplifier Features |
|||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amp Type |
Tube Preamp & Class D Power Amp |
||||||||||||||||||||
Chassis Material |
Aluminum |
||||||||||||||||||||
Preamp Tubes |
1x Mesa 12AT7 |
||||||||||||||||||||
Power Amp Power Devices |
Class D Power Amp |
||||||||||||||||||||
Wattage(s) Quick Reference |
800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms |
||||||||||||||||||||
Power Amp Details |
Light-Weight, Compact Class D Power Amp with Variable Damping Control, Protection, Limit & 2-Ohm Load LED Indicators |
||||||||||||||||||||
Convection or Fan Cooling |
Fan Cooled |
||||||||||||||||||||
Instrument Input Options |
1x 1/4" with Active/Passive Switch |
||||||||||||||||||||

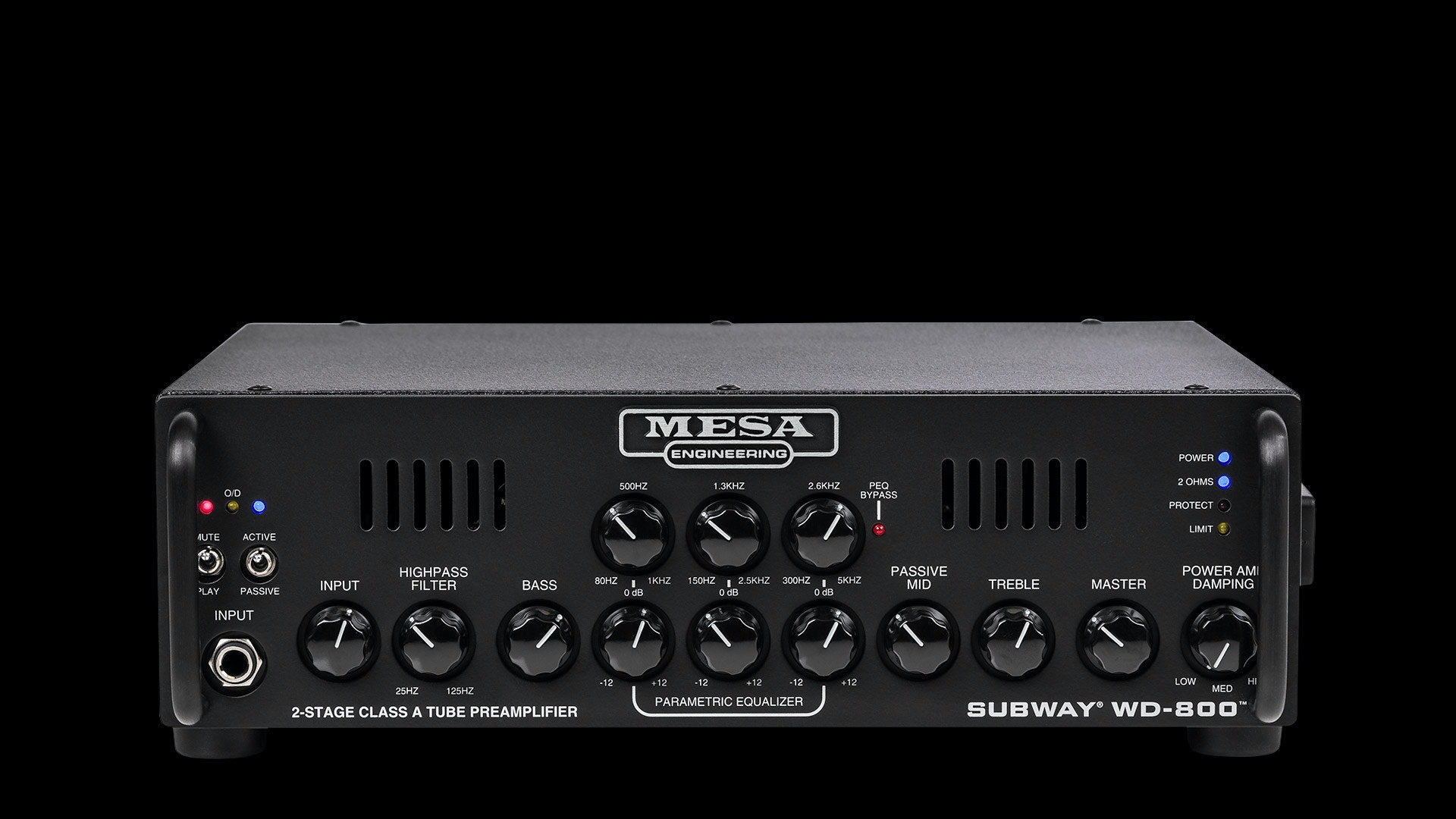

Preamp Details |
2-Stage Class-A Preamp featuring Input Gain with Clip Indicator (O/D LED), Variable High-Pass Filter (25Hz-125Hz), Fully Active 5-Band EQ (+/- 12dB) featuring Bass, Treble and a selectable/bypassable 3-Band Semi-Parametric EQ Sweepable from 80Hz-1KHz, 150Hz-2.5KHz & 300Hz-5KHz respectively, Passive Mid Control & Master Volume |
||||||||||||||||||||
Effects Loop |
Fully Buffered Series FX Loop |
||||||||||||||||||||
Solo Level Control |
n/a |
||||||||||||||||||||

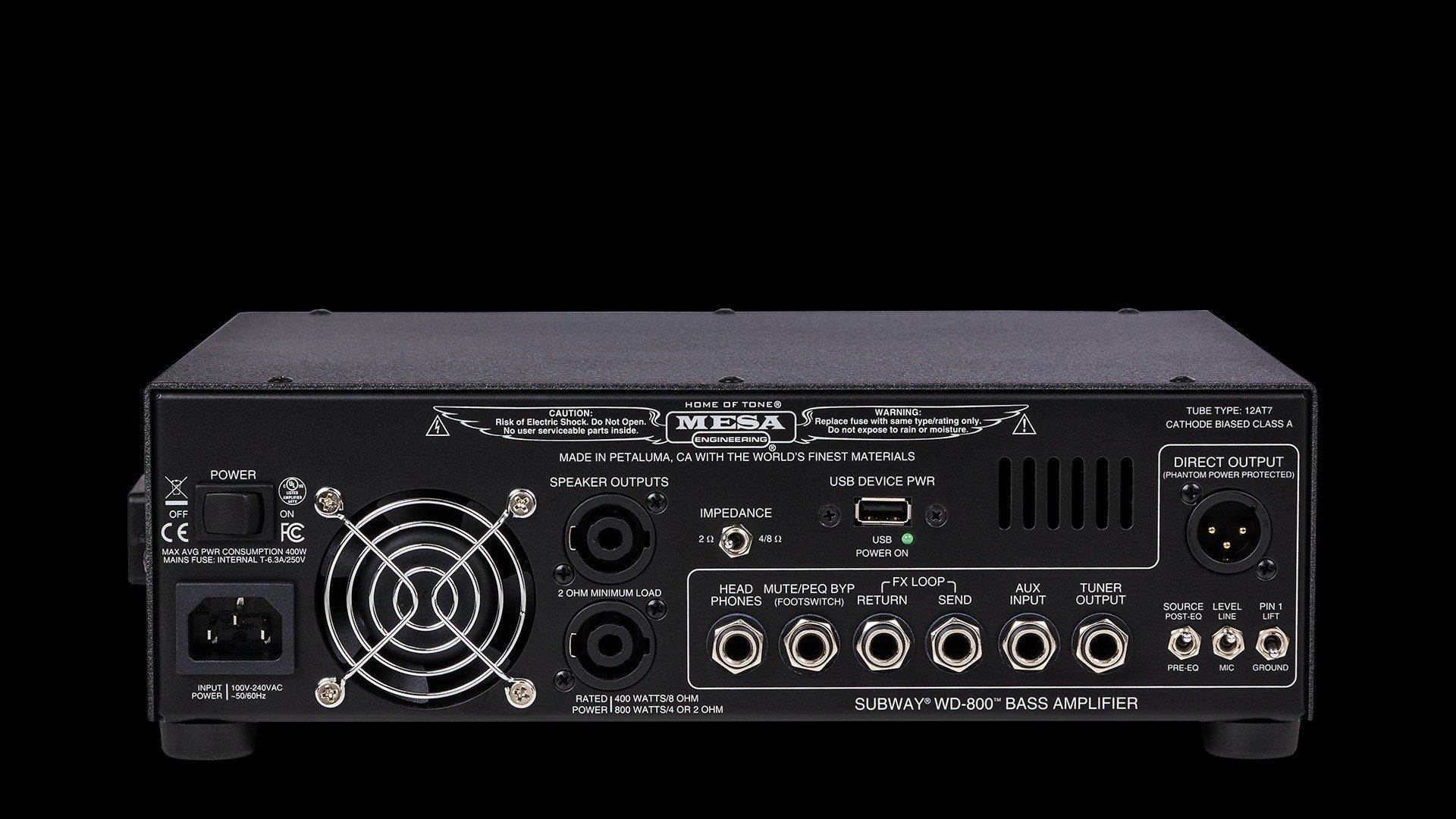

Direct Line Output (DI) |
Balanced XLR Out with Pre/Post, Line/Mic & Ground Lift Switches |
||||||||||||||||||||
Tuner Output / Mute |
Tuner Output (back panel) with Play/Mute Switch (front panel) and External Mute Switching Jack (back panel) - See "Footswitch" in the Accessories Section for additional options |
||||||||||||||||||||
External Switching Jack Options |
External Switching Jack for Parametric EQ & Mute (Footswitch Sold Separately) |
||||||||||||||||||||
Speaker Outputs |
2 - Speakon Output Jacks (no 1/4" speaker jacks) - 8, 4 or 2 Ohms |
||||||||||||||||||||
Headphone Output |
Yes |
||||||||||||||||||||
Slave Output |
n/a |
