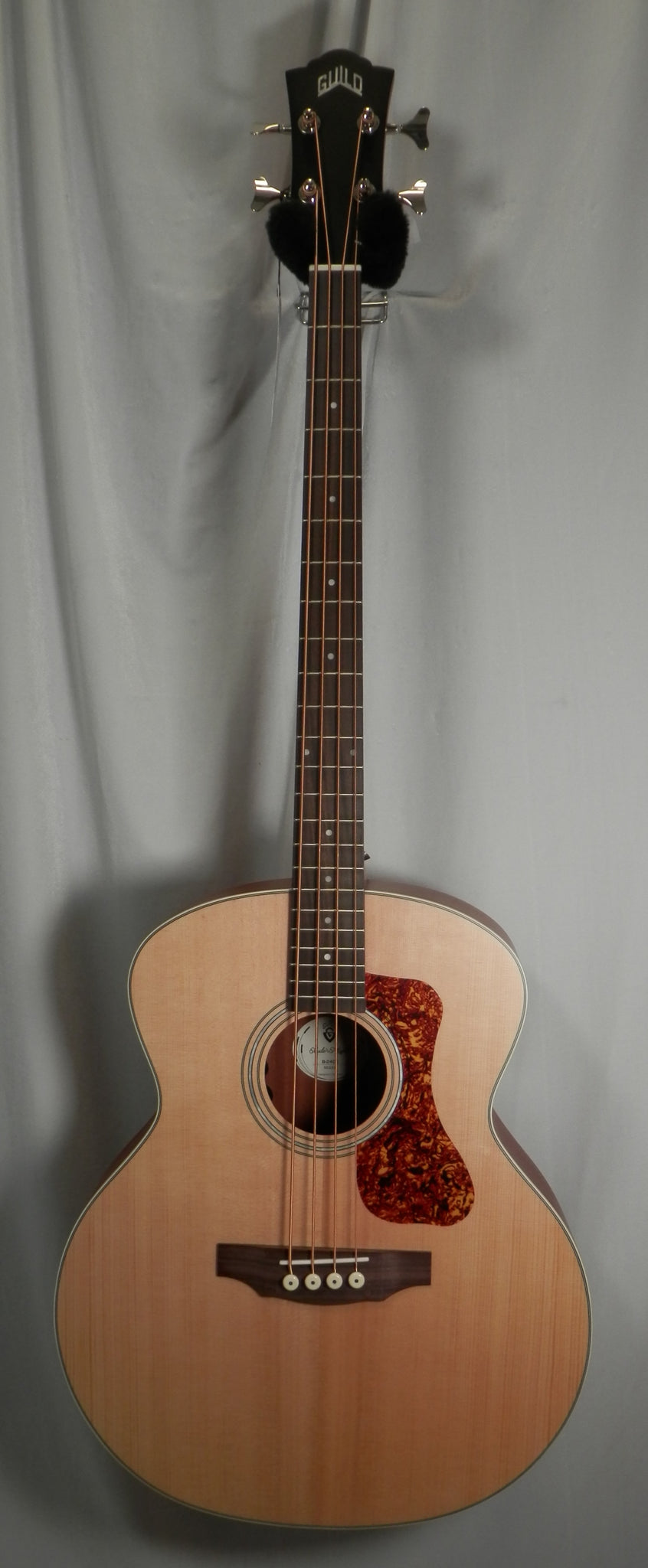

Guild B-240E Natural Acoustic Electric Bass
Does not include a case
b-240e
series: westerly collection

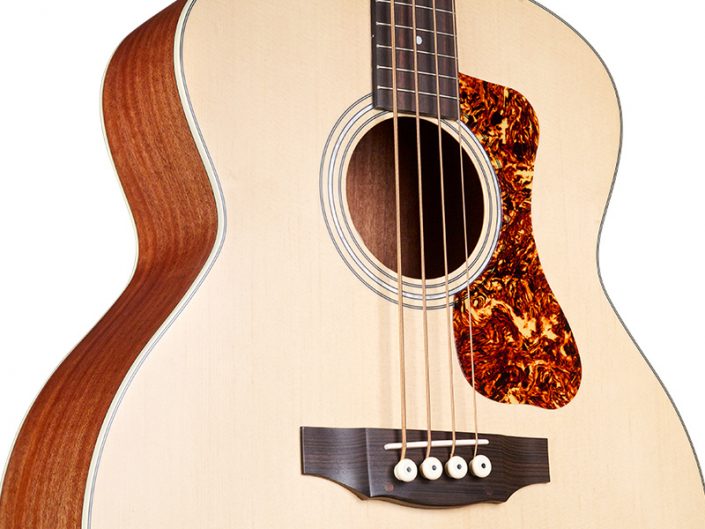

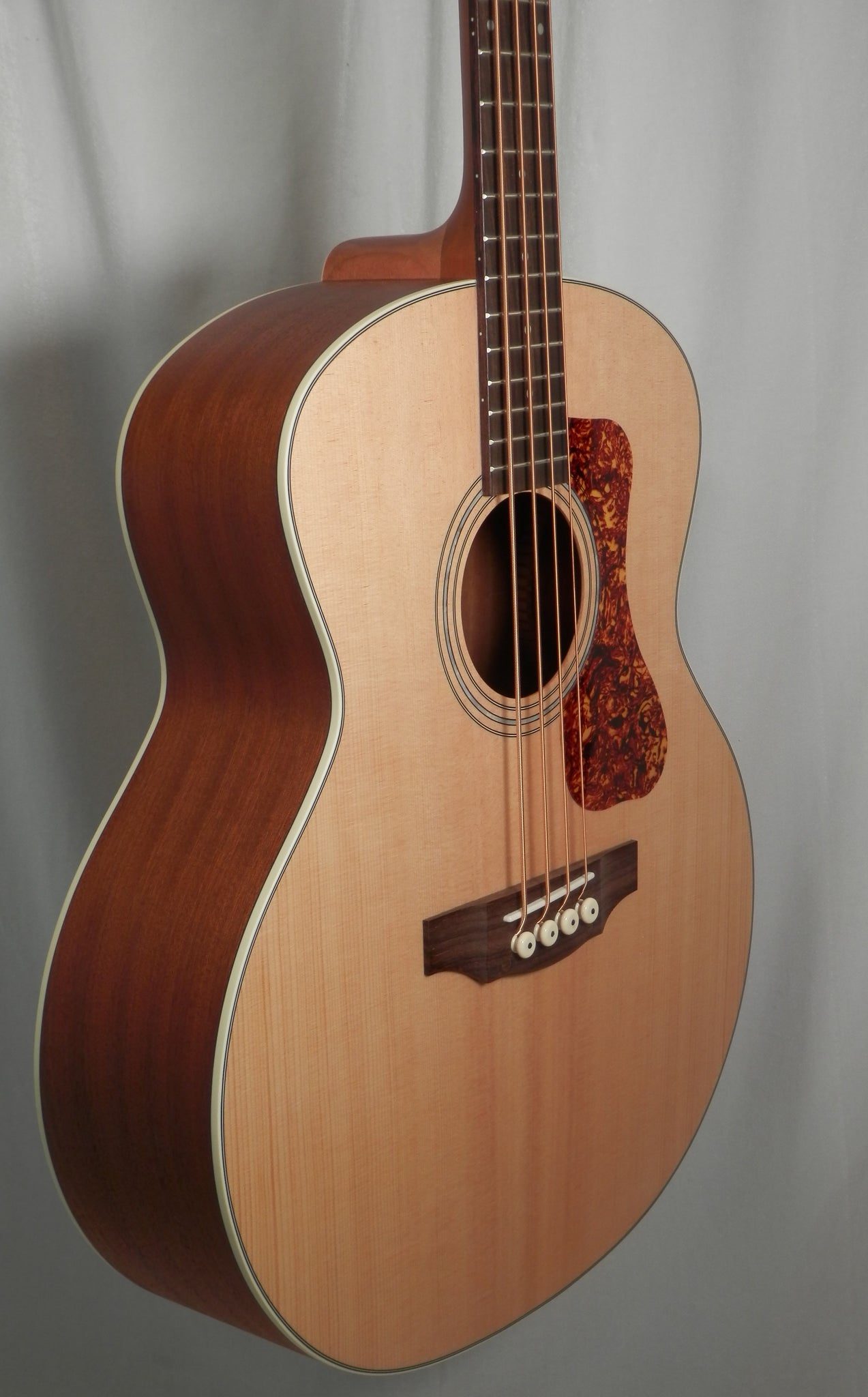

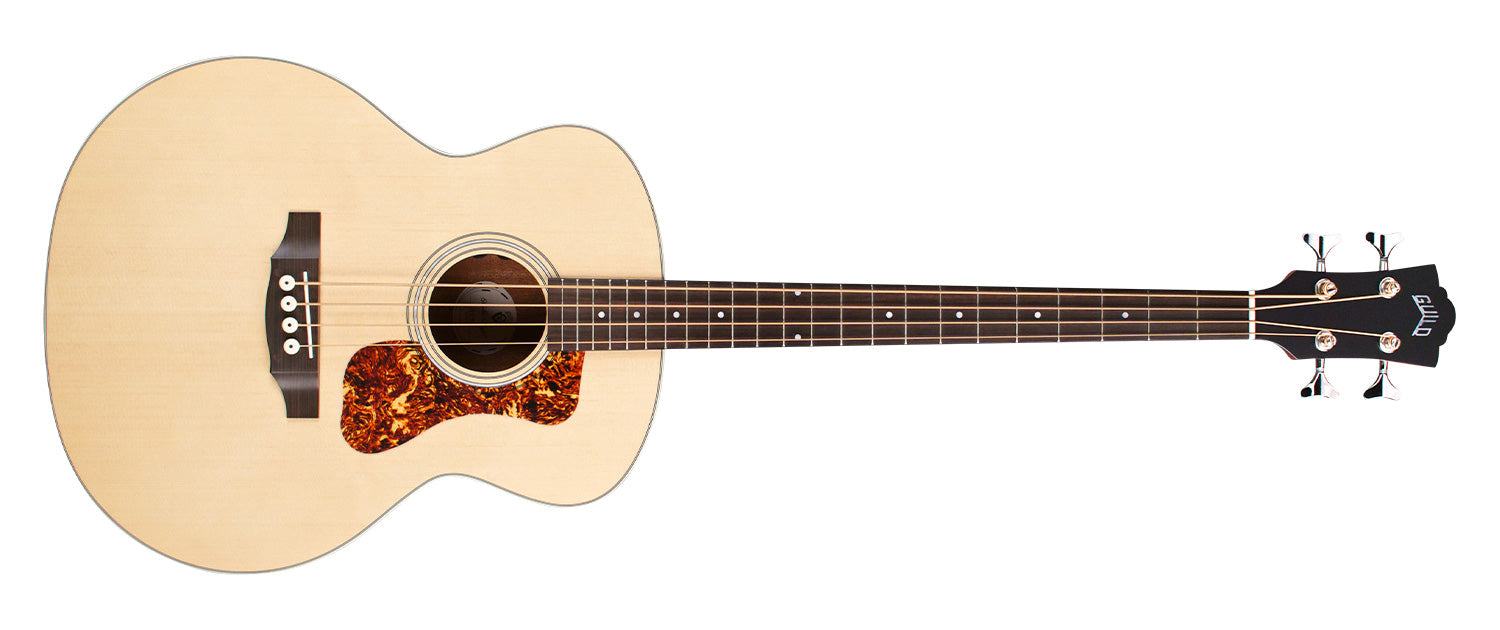

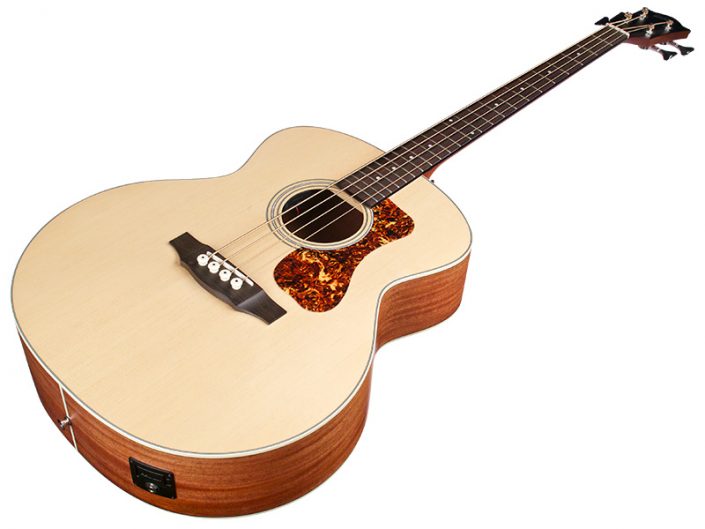

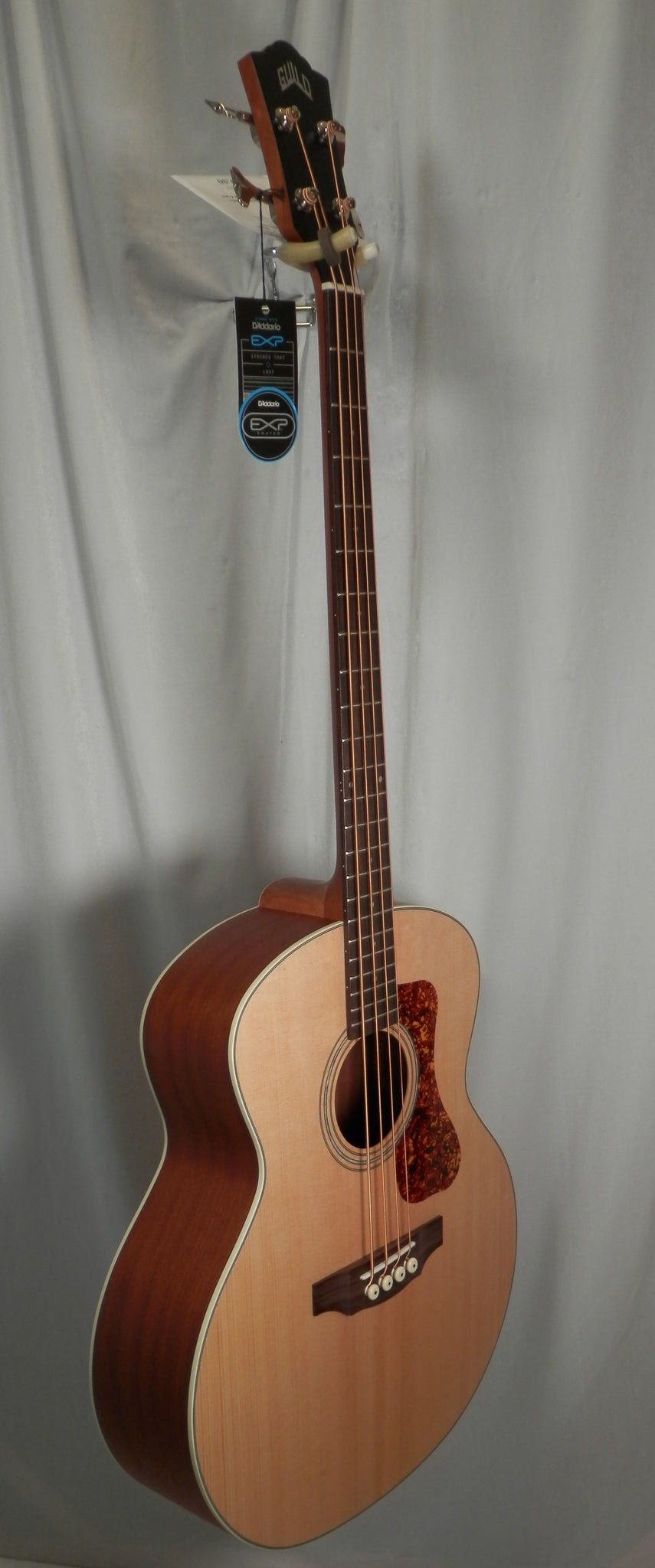

We pioneered acoustic bass guitar design in the mid-1970s with the B-50, which featured a jumbo body shape, arched mahogany back, and an easy to play, 30 3/4” scale length. Decades later, these vintage features are back with our B-240E, offering bassists a workhorse acoustic instrument with big tone that plays with ease. Built with a solid Sitka spruce top over an arched mahogany back and mahogany sides, the B-240E will hold its own in acoustic jams. It can also be easily amplified through an onboard Guild/Fishman Bass Sonitone Bass system. The B-240E features a pau ferro fingerboard and bridge, slim C shape neck profile, 1 5/8” bone nut and bone saddle, tortoiseshell pickguard, and a mother-of-pearl rosette.
Body
Body Shape
B - Jumbo Bass

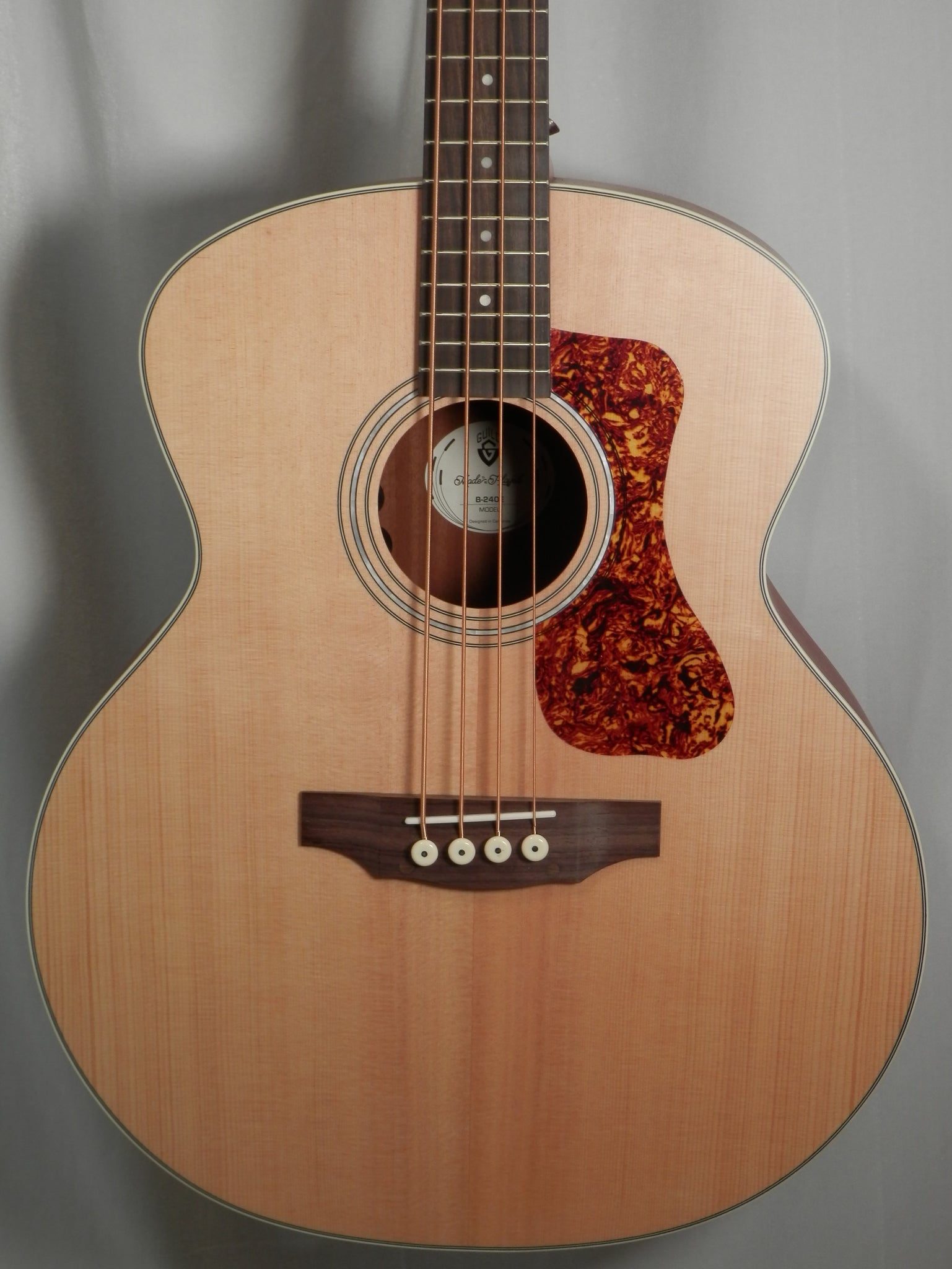

Body Top
Solid Sitka Spruce
Top Bracing Pattern
Scalloped X
Soundhole Diameter
3 7/8" (98mm)
Rosette
Mother-Of-Pearl / ABS
Top Purfling Inlay
Black/White/Black ABS
Body Sides
Mahogany

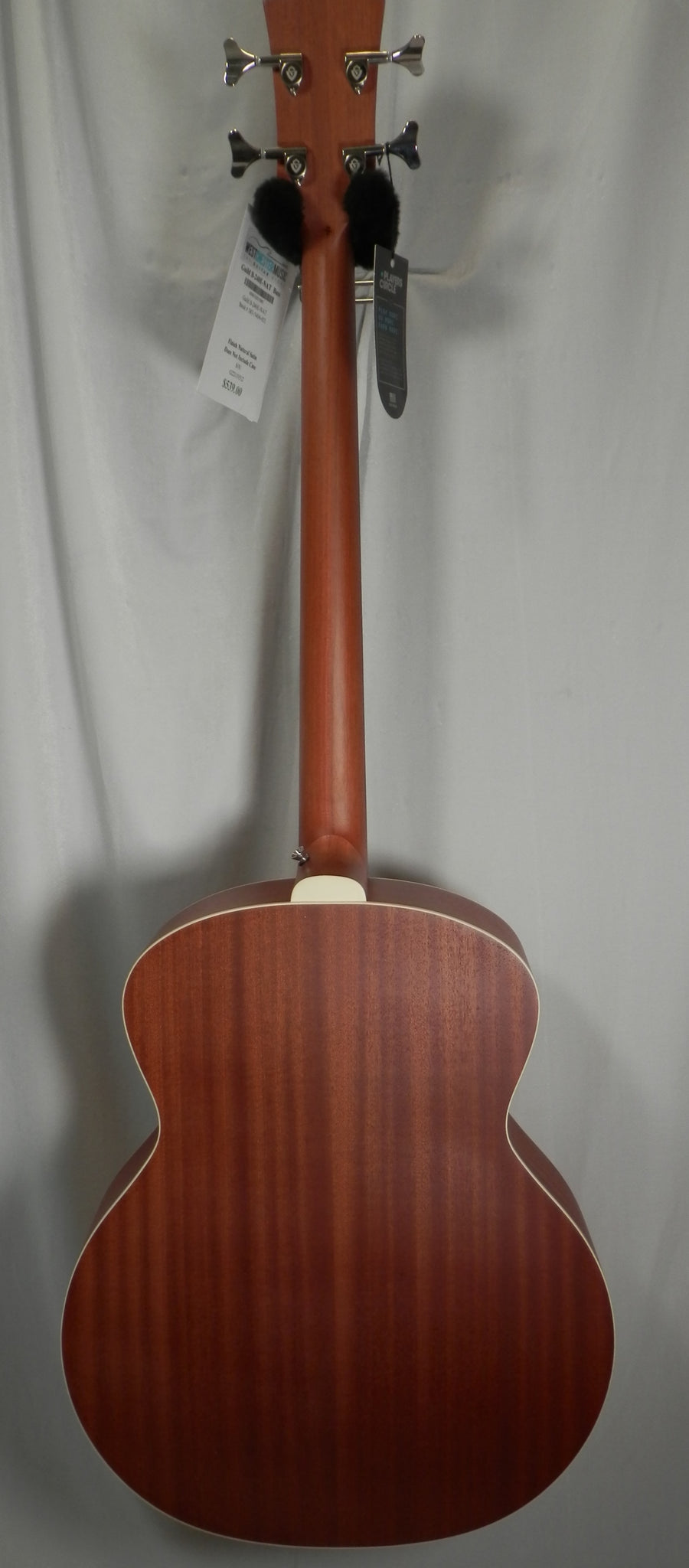

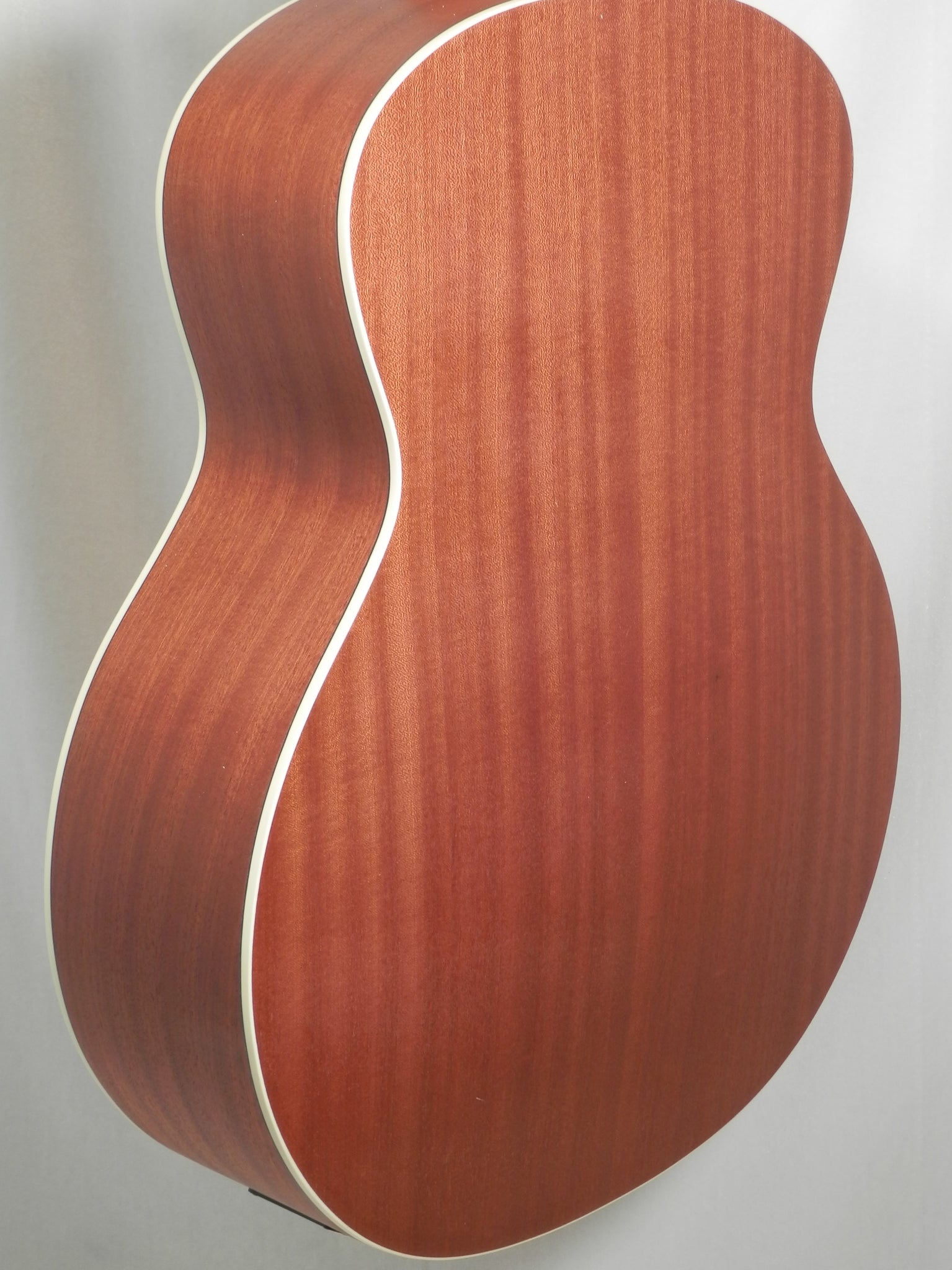

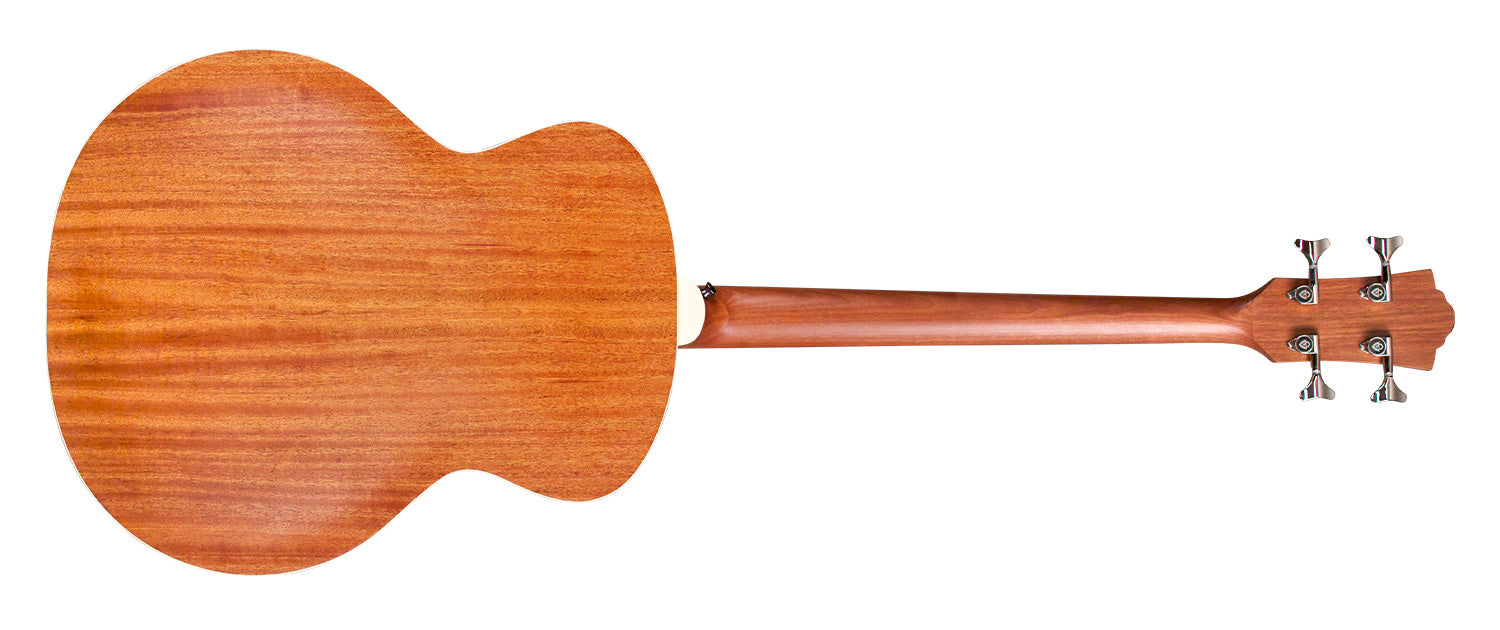

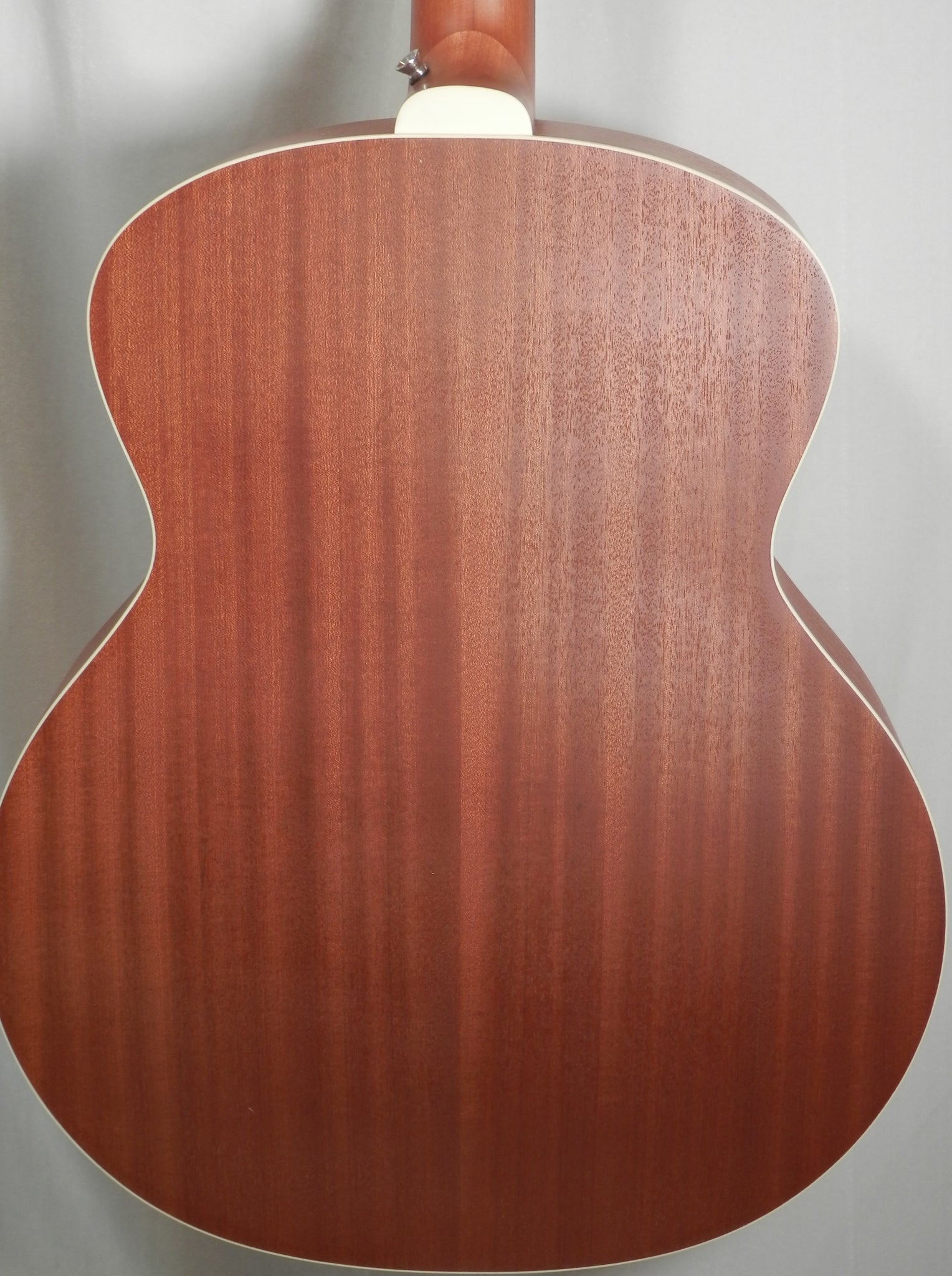

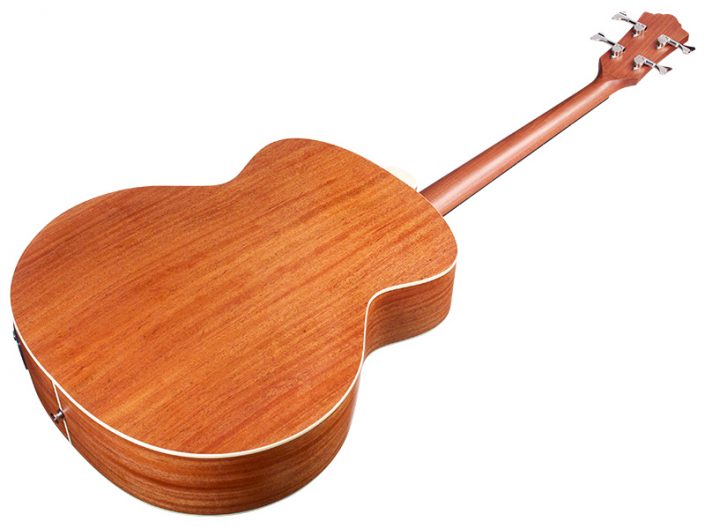

Body Back
Arched Mahogany
Body Binding
Ivory ABS
Neck
Neck Material
Mahogany
Scale Length
30 3/4" (781mm)
Neck Shape
C Shape
Nut Width
1 5/8" (41mm)
Neck Thickness
1st Fret
22mm
Neck Thickness
9th Fret
24mm
Truss Rod
Dual Action
Truss Rod Wrench
4mm Allen Key
Fingerboard Material
Pau Ferro
Fingerboard Radius
16" (406mm)
Fingerboard Inlays
5mm Dots - Mother-Of-Pearl
Frets Total
23
Finish
Color
Natural (NAT)
Finish
Satin Polyurethane
Hardware
Bridge Material
Pau Ferro
Bridge String Spacing
2" (52mm)
Bridge Pins
Ivory Colored Plastic with Black Dot
Saddle Material
Bone
Hardware Finish / Plating
Nickel Plated
Nut Material
Bone
Tuning Machines
Guild Bass Closed-Gear Fishtail
Endpin
Strap Button - Nickel
Pickguard
Tortoiseshell
Electronics
Electronics
Guild/Fishman Sonitone BT-1 with Volume and Tone Controls
Other
Strings
D'Addario EXPPBB170 Coated Phosphor Bronze, Light Gauge, Acoustic Bass Long Scale (.045 .065 .080 .100)
Included Case
Case Sold Separately
Upper Bout Width
12 5/8" (321mm)
Lower Bout Width
17" (432mm)
Body Depth Upper Bout
3 7/8" (99mm)
Body Depth Lower Bout
5 1/4" (133mm)
Body Length
20 5/8" (524mm)
Overall Length
47 7/8" (1216mm)
Item # 3835404921
