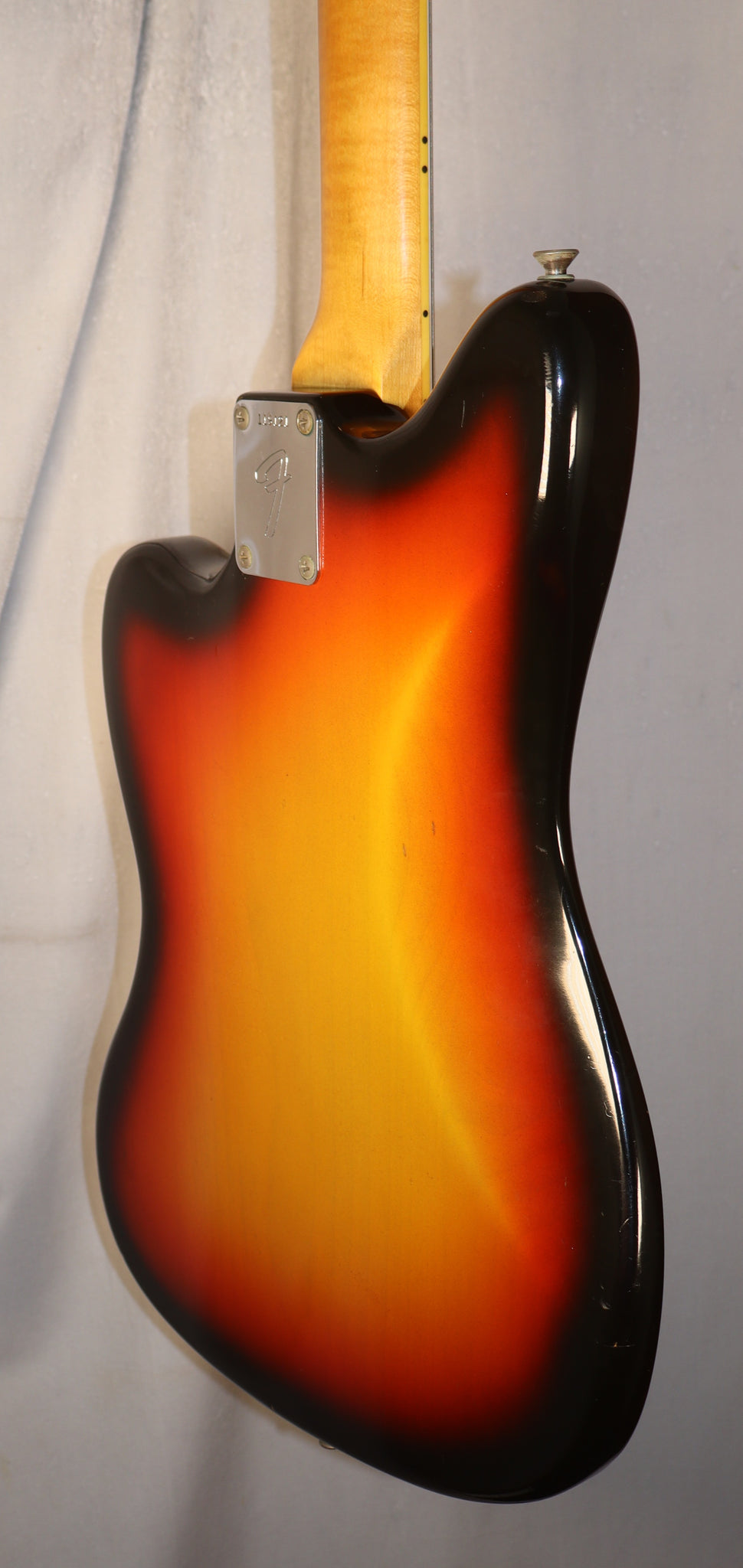

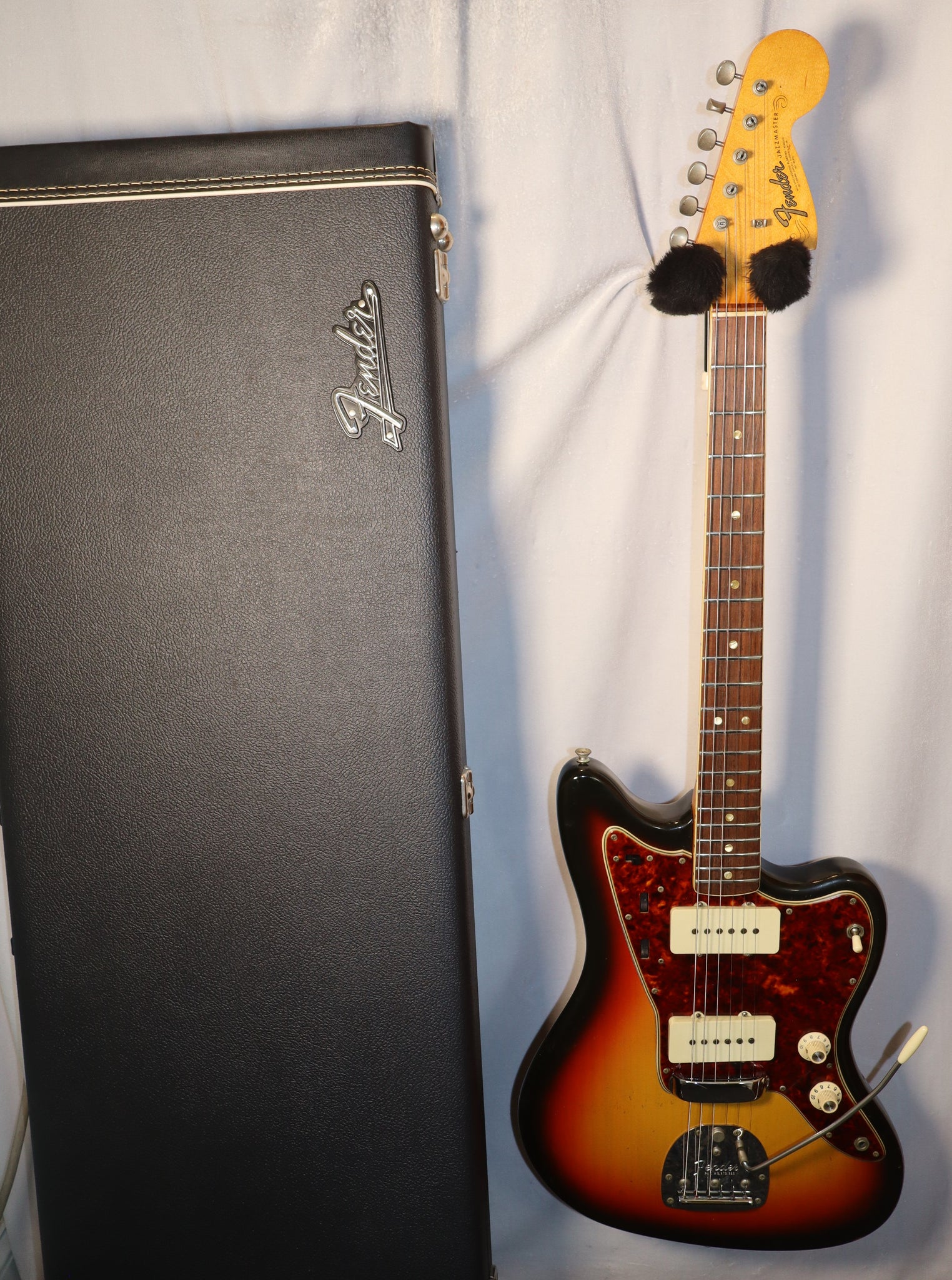

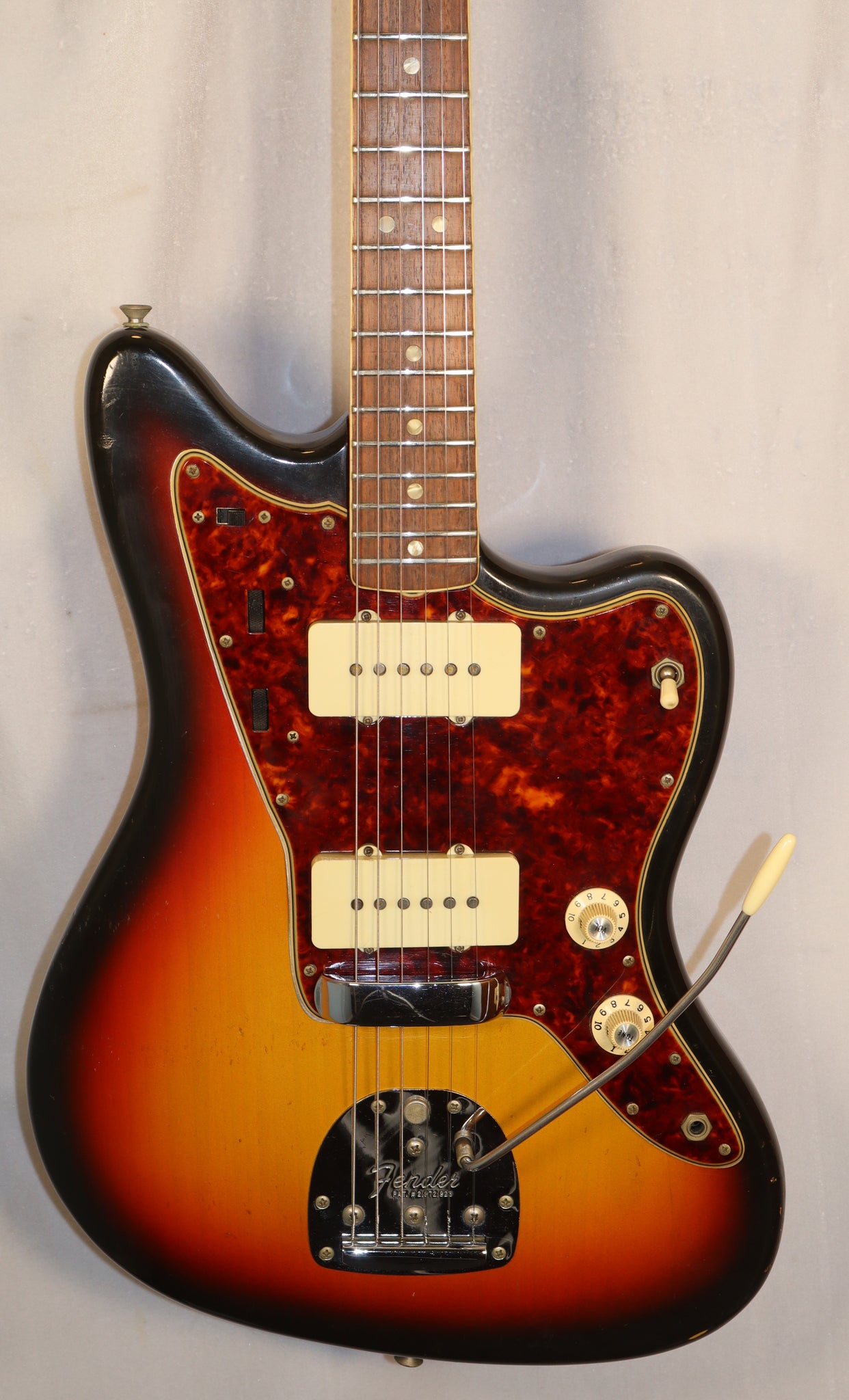

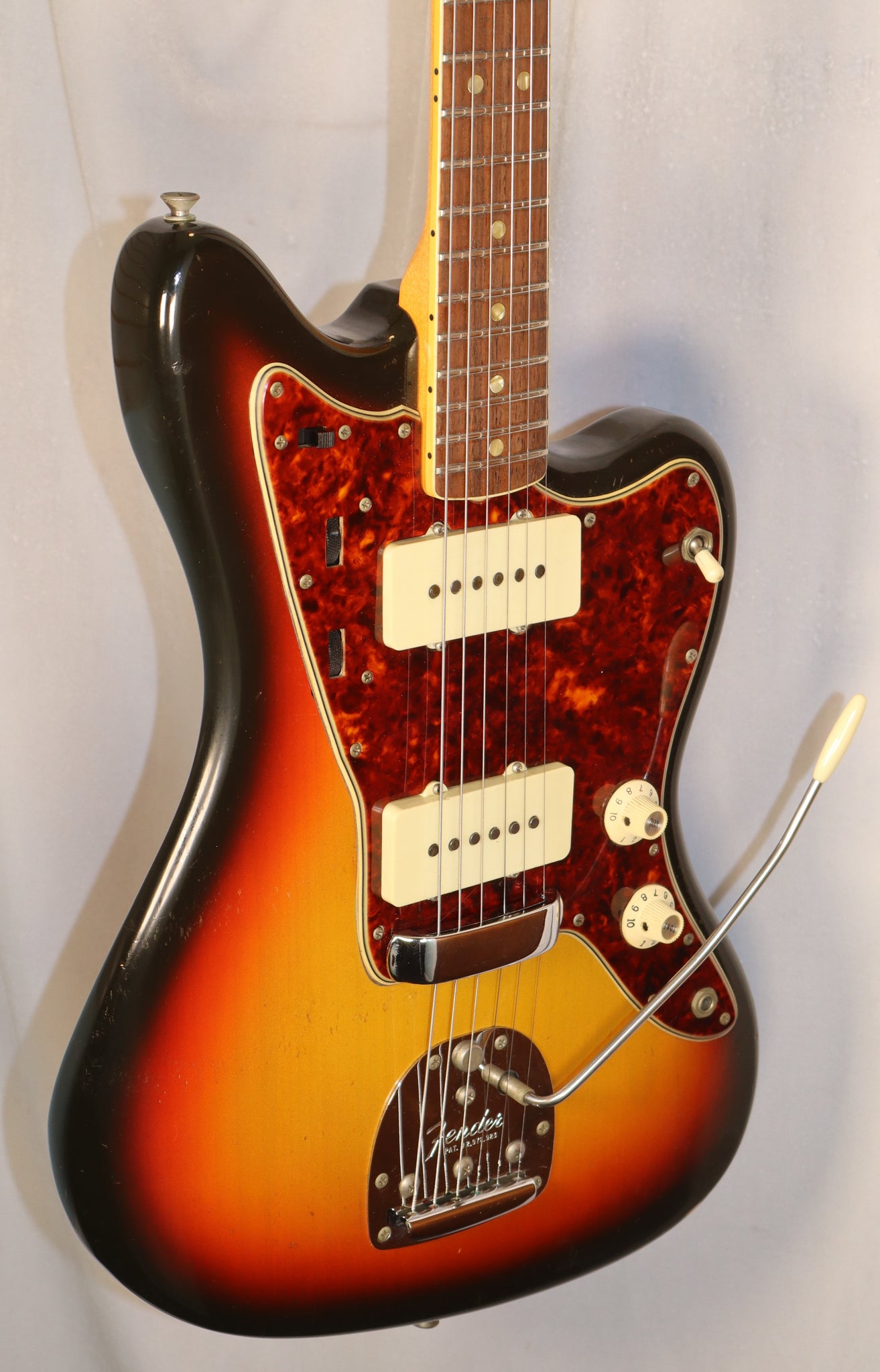

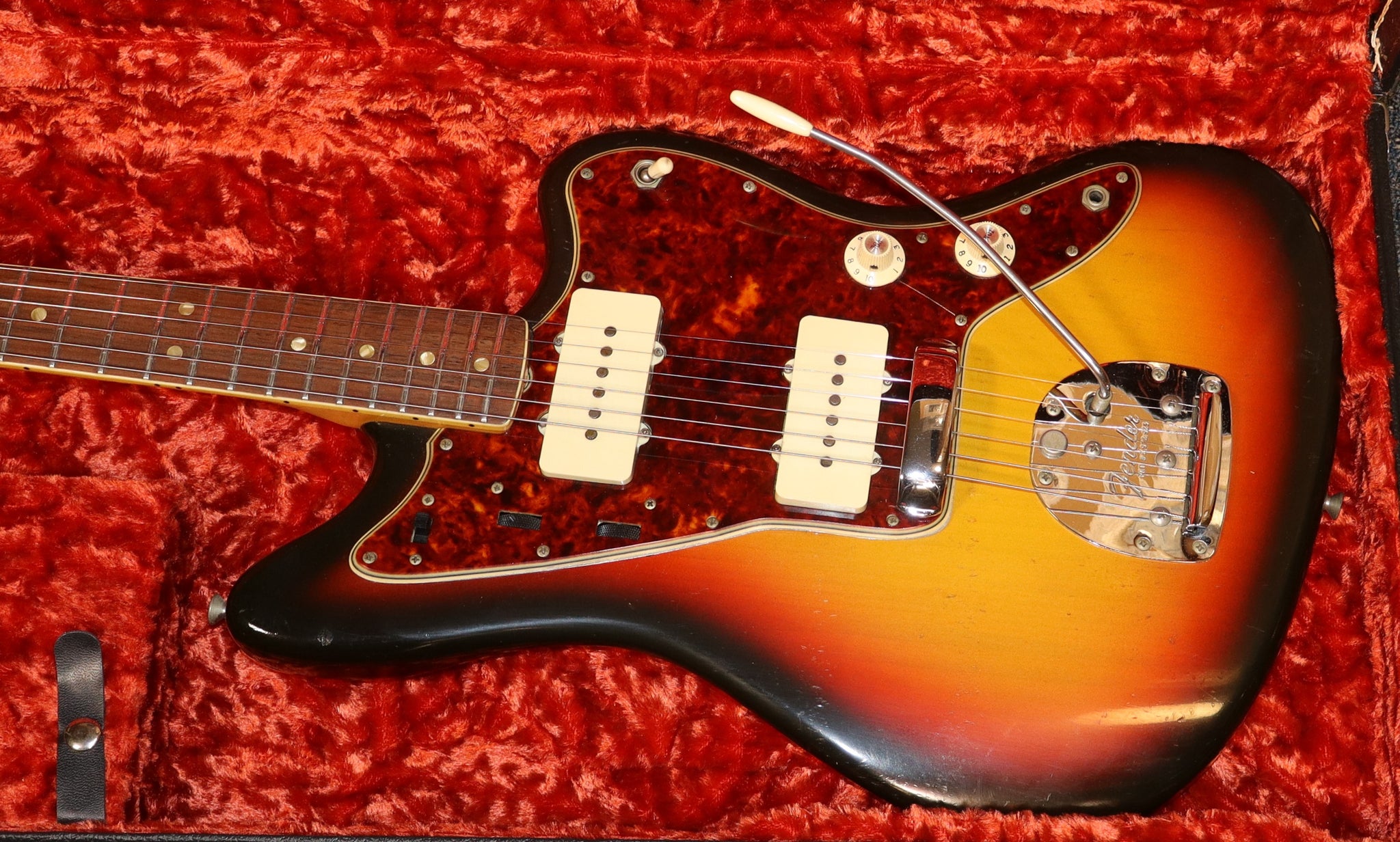

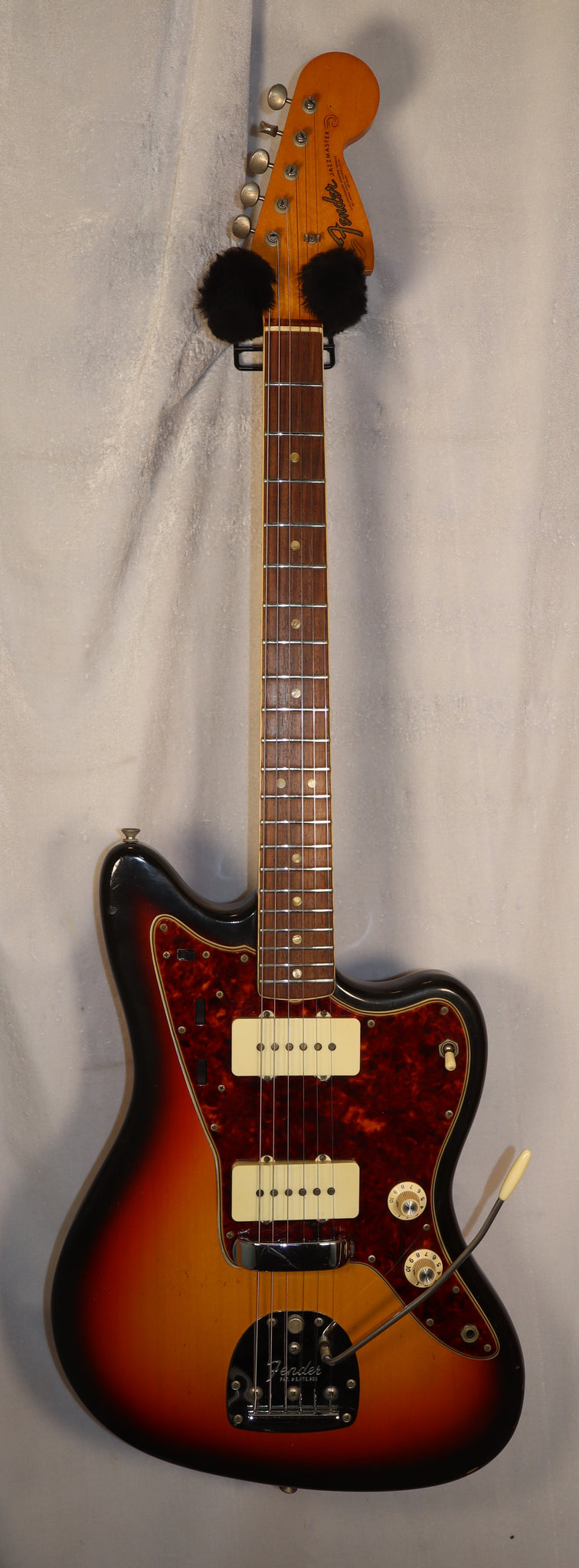

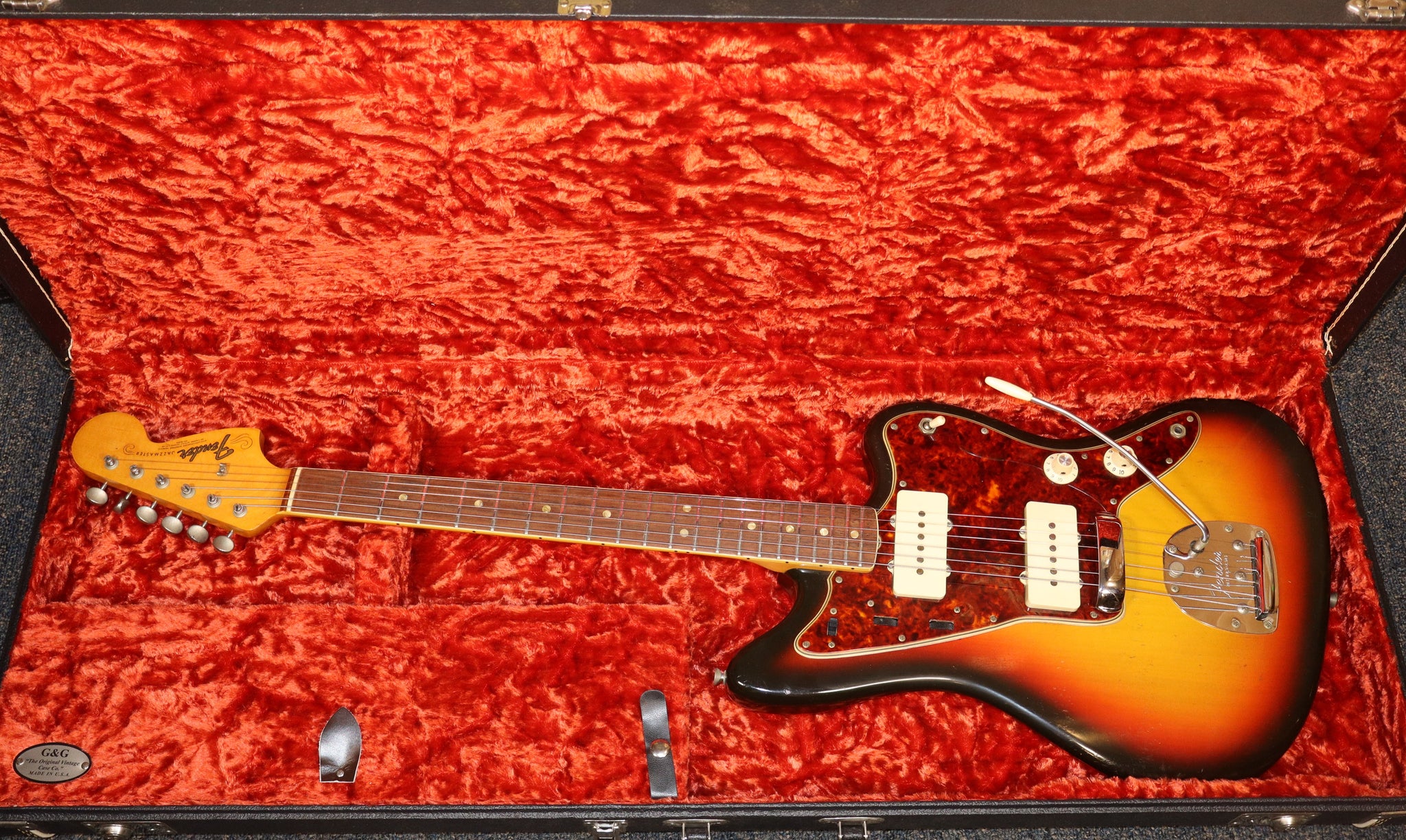

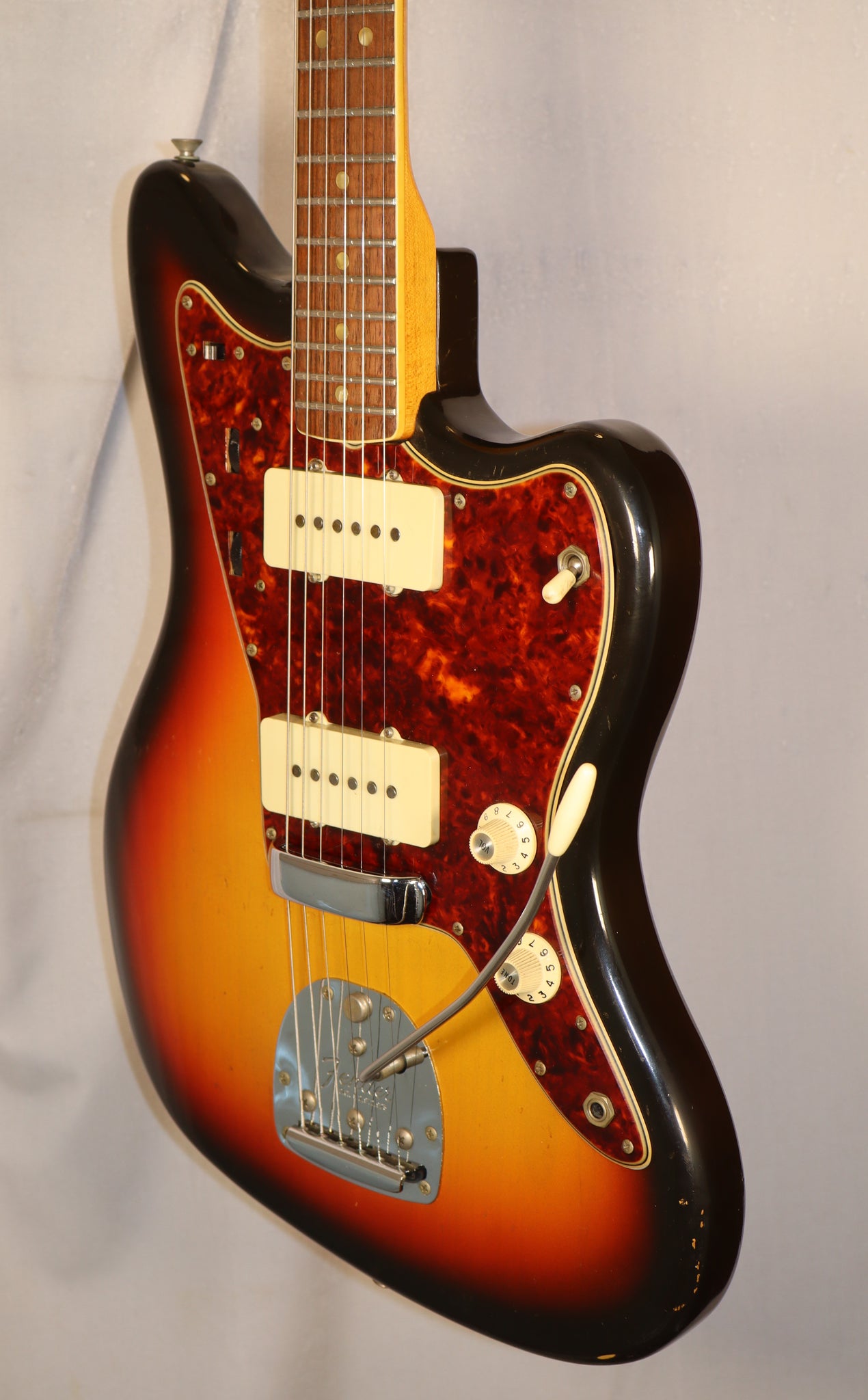

vintage 1966 Fender Jazzmaster Sunburst electric guitar with reissue Fender case

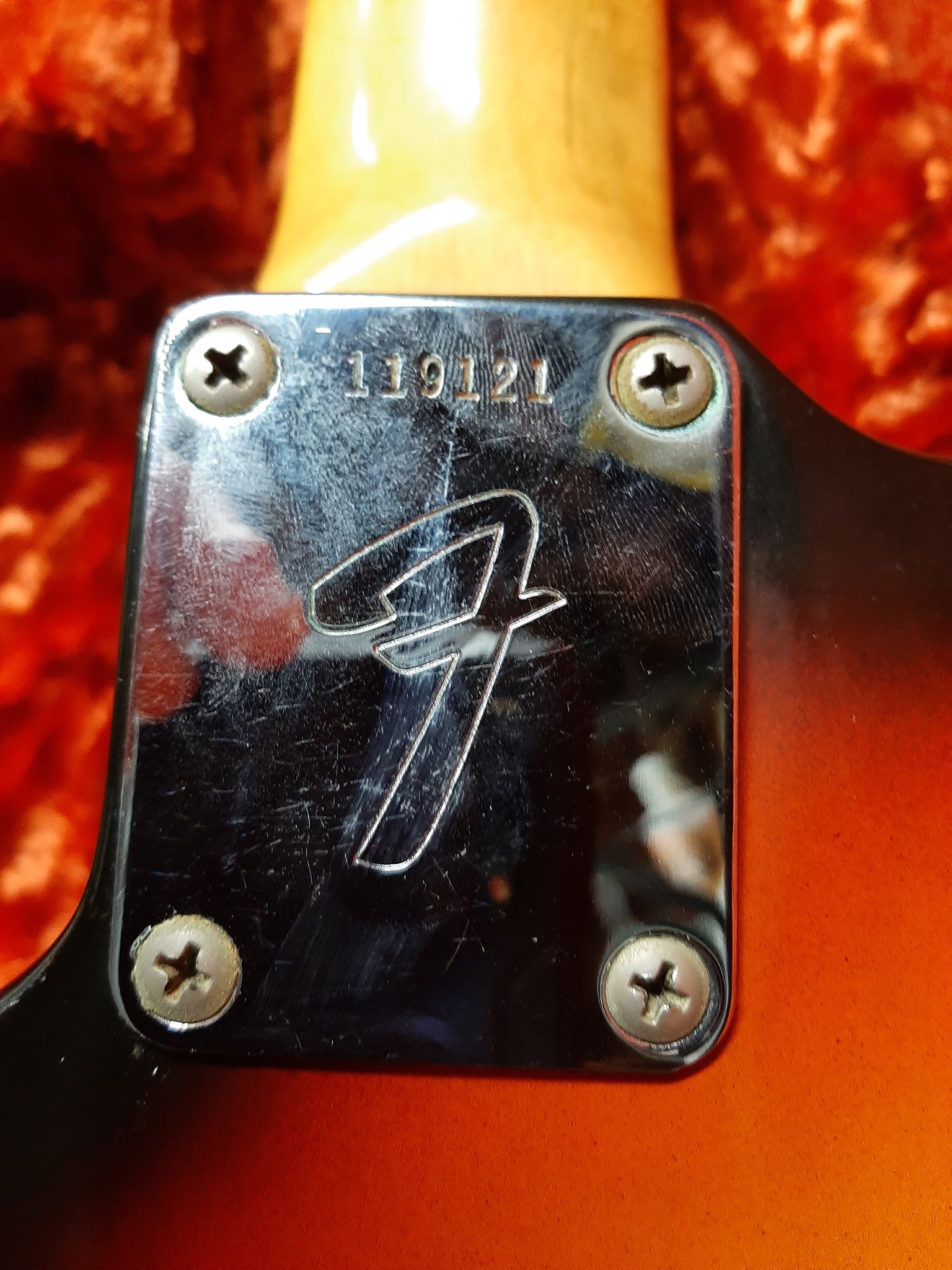

s/n 119121

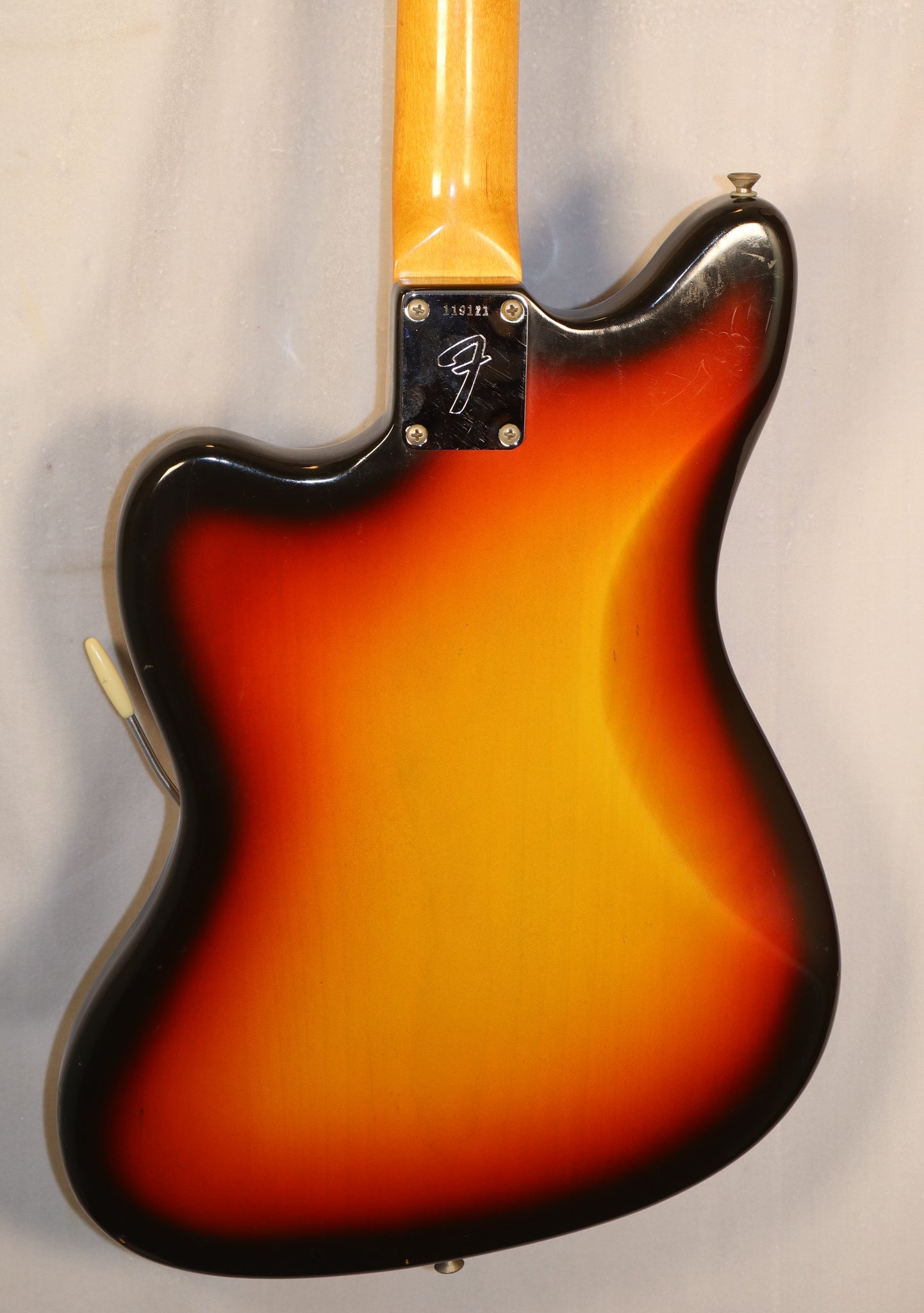

Some light play wear on the top and back, finish checking and wear consistent with age and use. This instrument is in very clean shape and in wonderful fully functional playing condition.
Additional internal photos available on request. We ship with Reverb Safe Shipping Protection.
Specs:

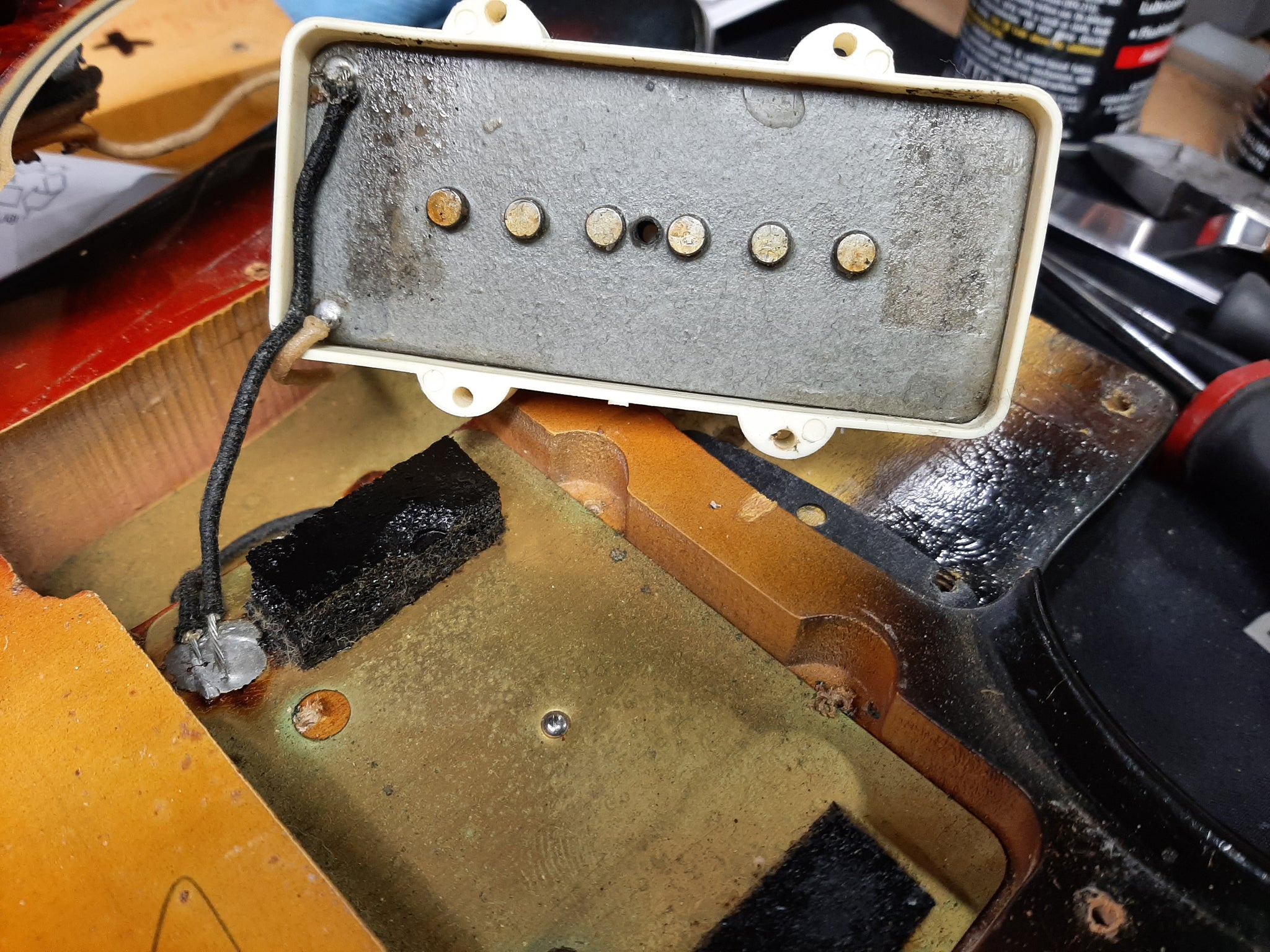

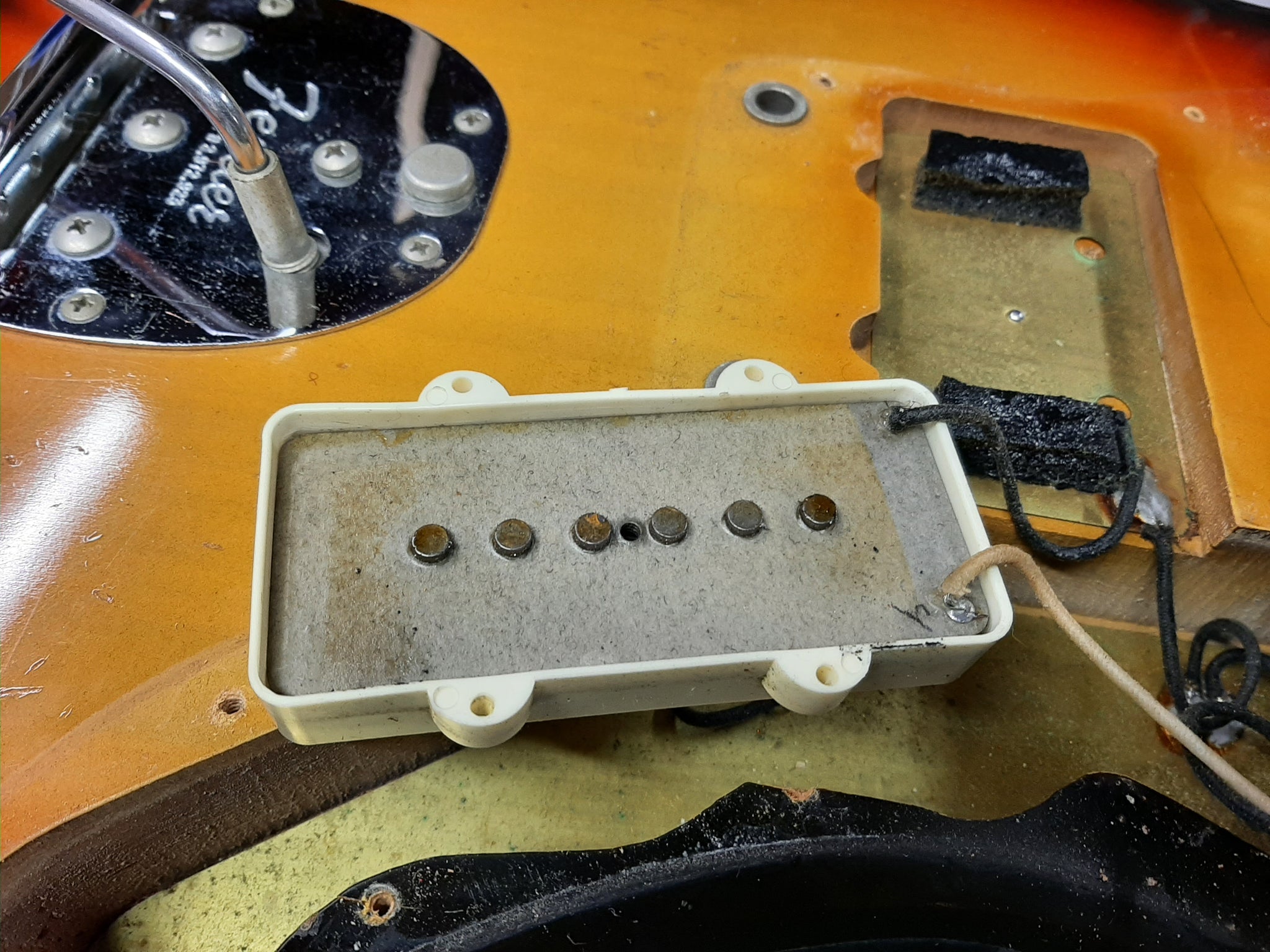

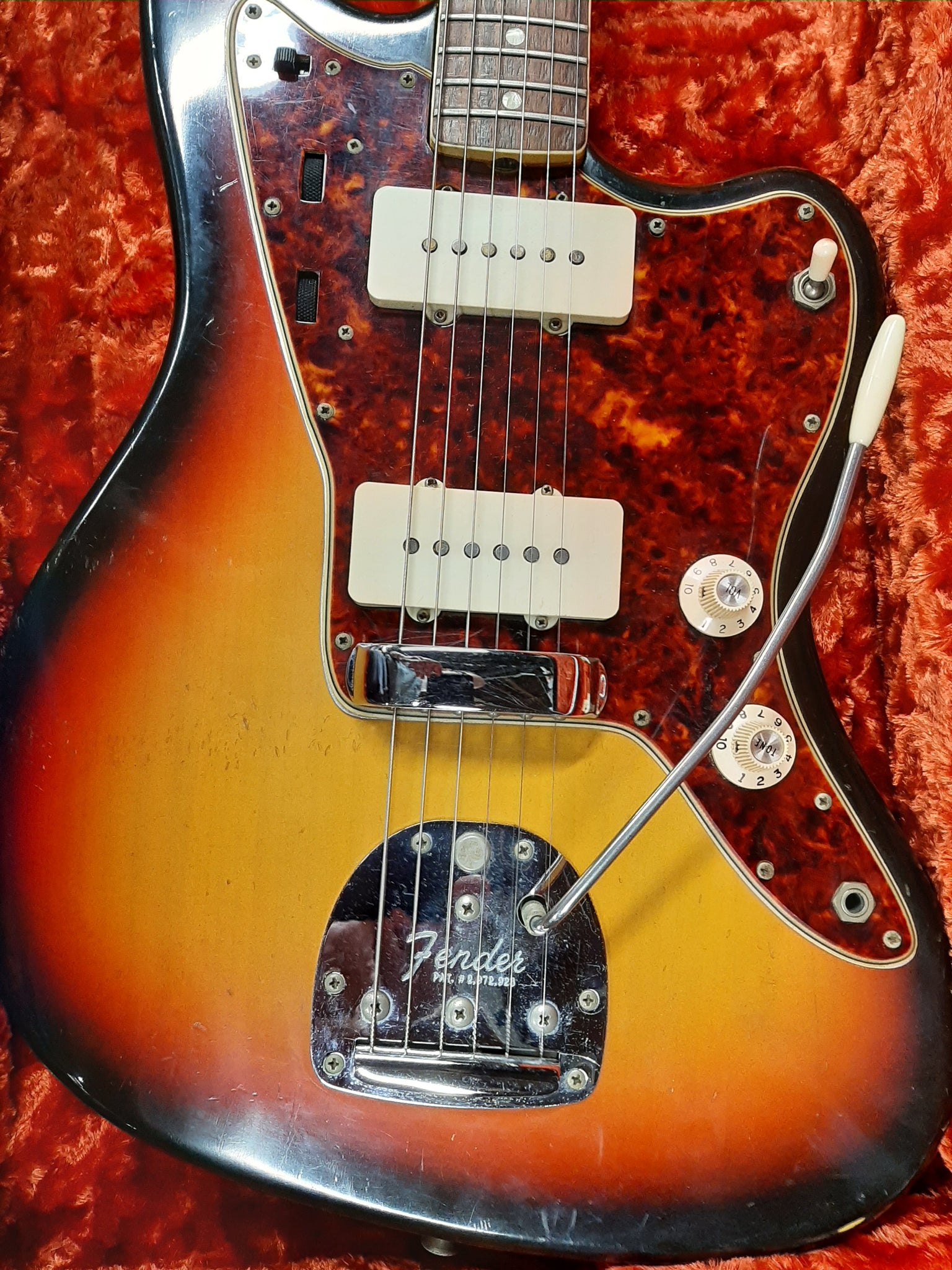

- Pickups: 6.95K (N), 6.65K (B)
- Fingerboard radius: 7.25"
- Nut Width: 1.68"
- Neck Width - 12th Fret: 2.04"
- Neck Depth - 1st Fret: 0.94"
- Neck Depth - 12th Fret: 0.92"
- Neck Profile - 1st Fret: "C"
- Neck Profile - 12th Fret: "C"
- Scale length: 25.5"
Guitar weighs 7lb 14oz
Setup for optimal playability with Daddario EXL110 10-46 (10/8/25).
- Intonation screws are worn/cammed out at the head end. The intonation is basically correct, so I did not adjust.
- There are two mysterious wooden shims under the A and D saddles, even though the adjustment screws seem fine and capable of full travel. Also did not mess with them
Diagnostic info for this instrument:

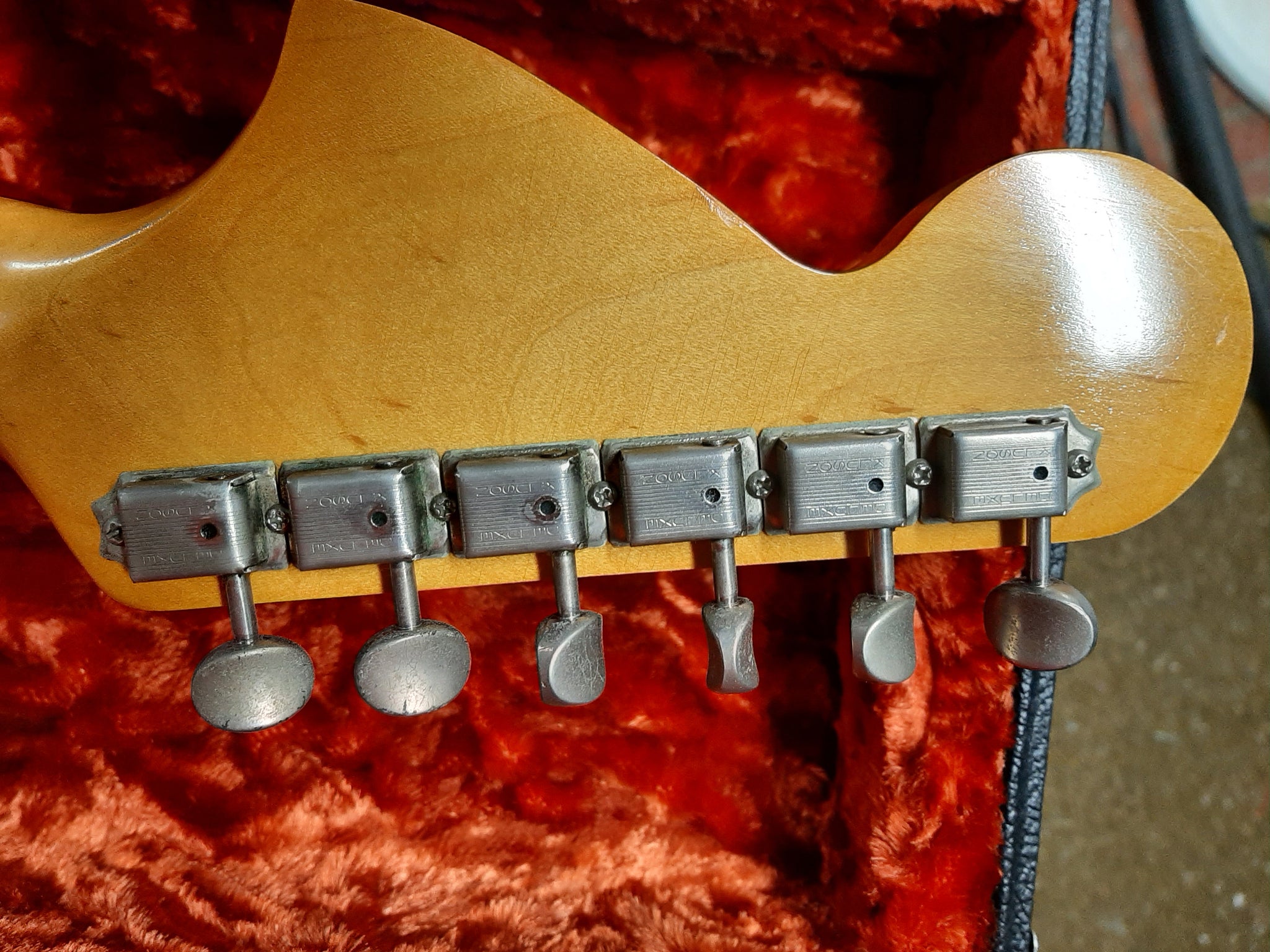

"Kluson Deluxe" tuners are period-correct for this instrument

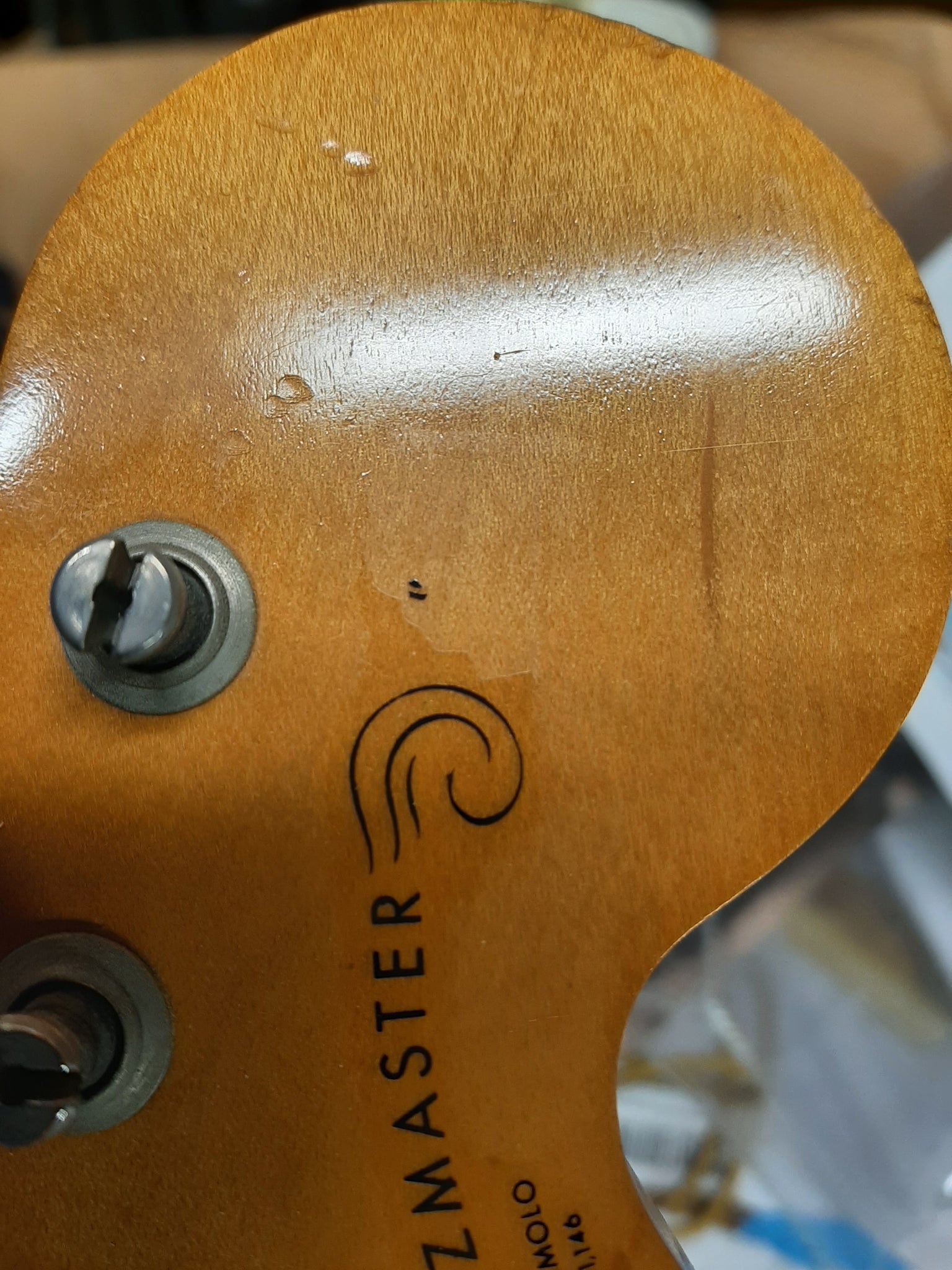

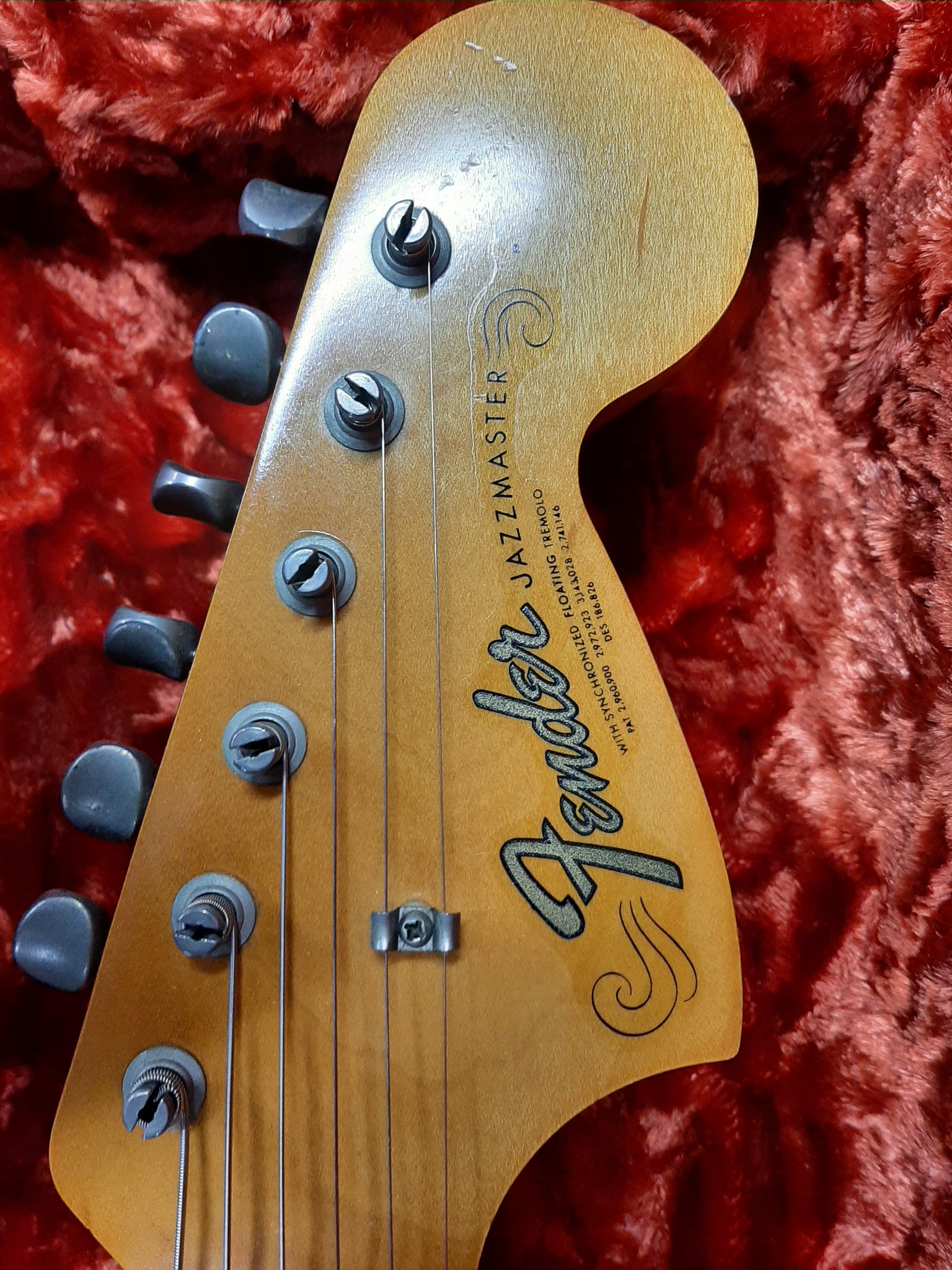

Headstock decal is questionable - "Offset Contour Body Pat. Pending" is missing but appears to be torn or worn off, leaving just a tiny remnant of the "C". If this is a replacement decal, this area could have torn off during application. If it is original, this is not a typical example of wear.
Neck has stamps consistent with Fender labeling in 1966

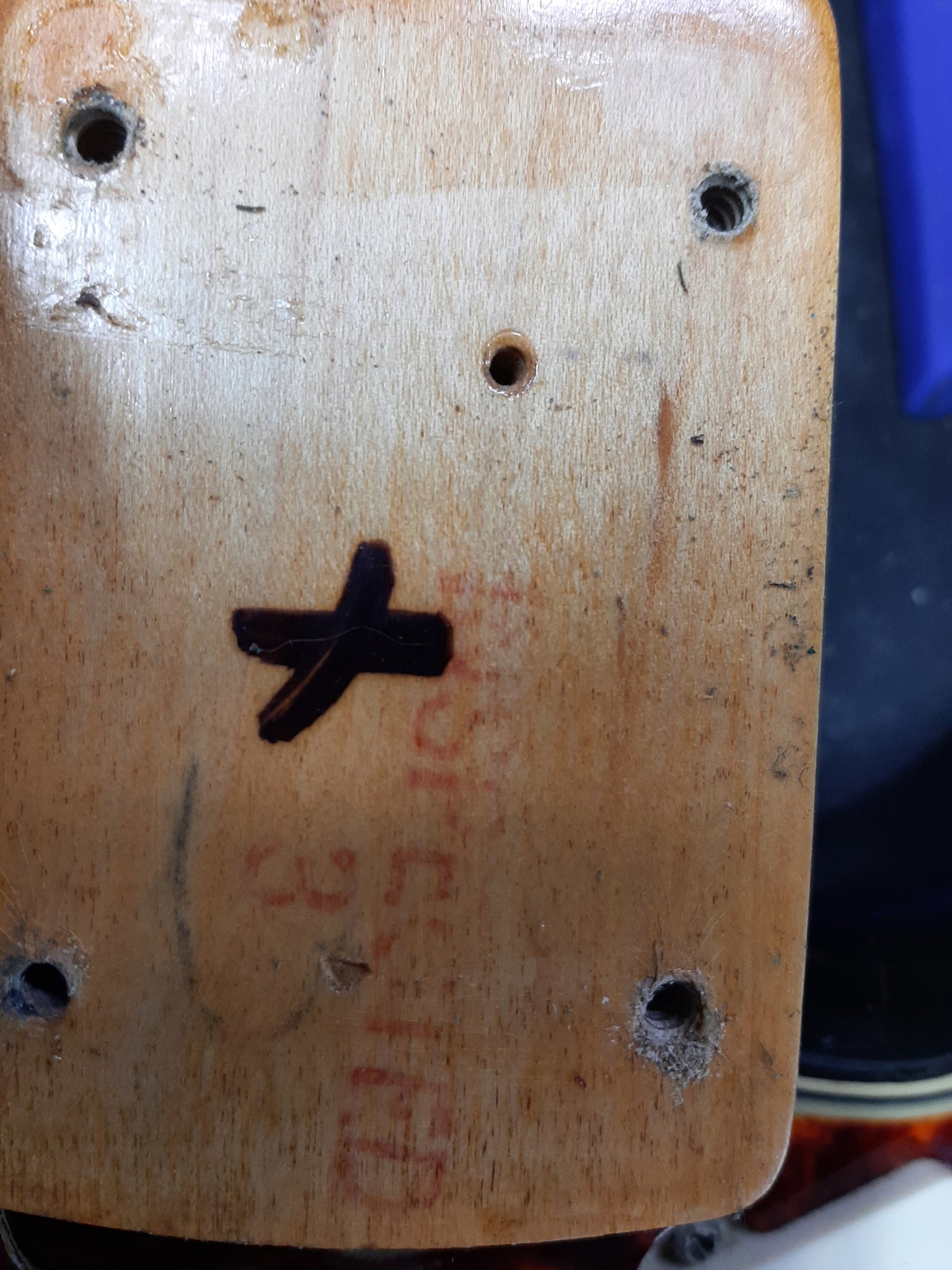

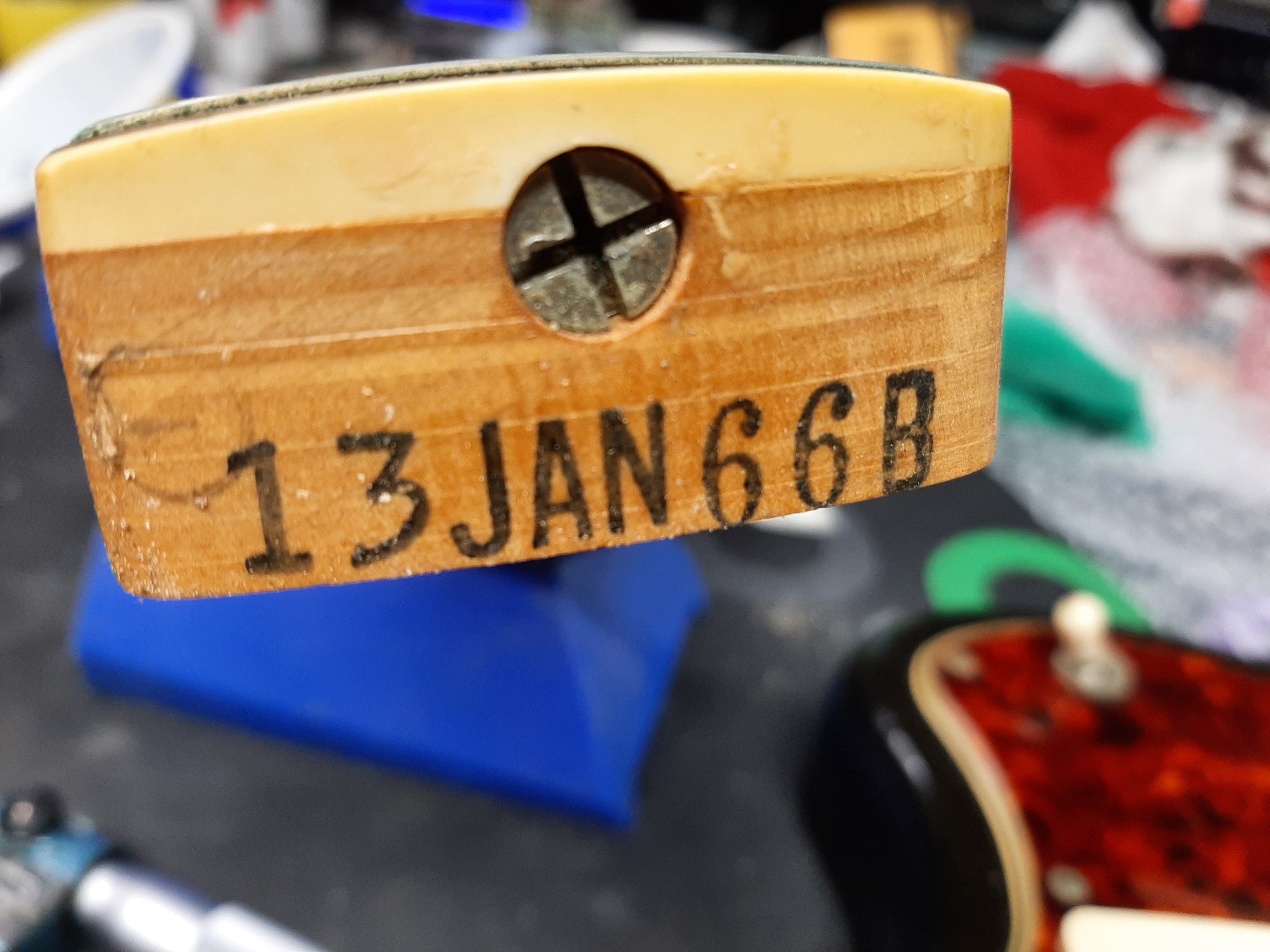

Neck Stamp: 13JAN66B:
- "13" is designation for '66 Jazzmaster
- "JAN66": Neck manufactured January 1966
- "B" is designates Normal neck width"

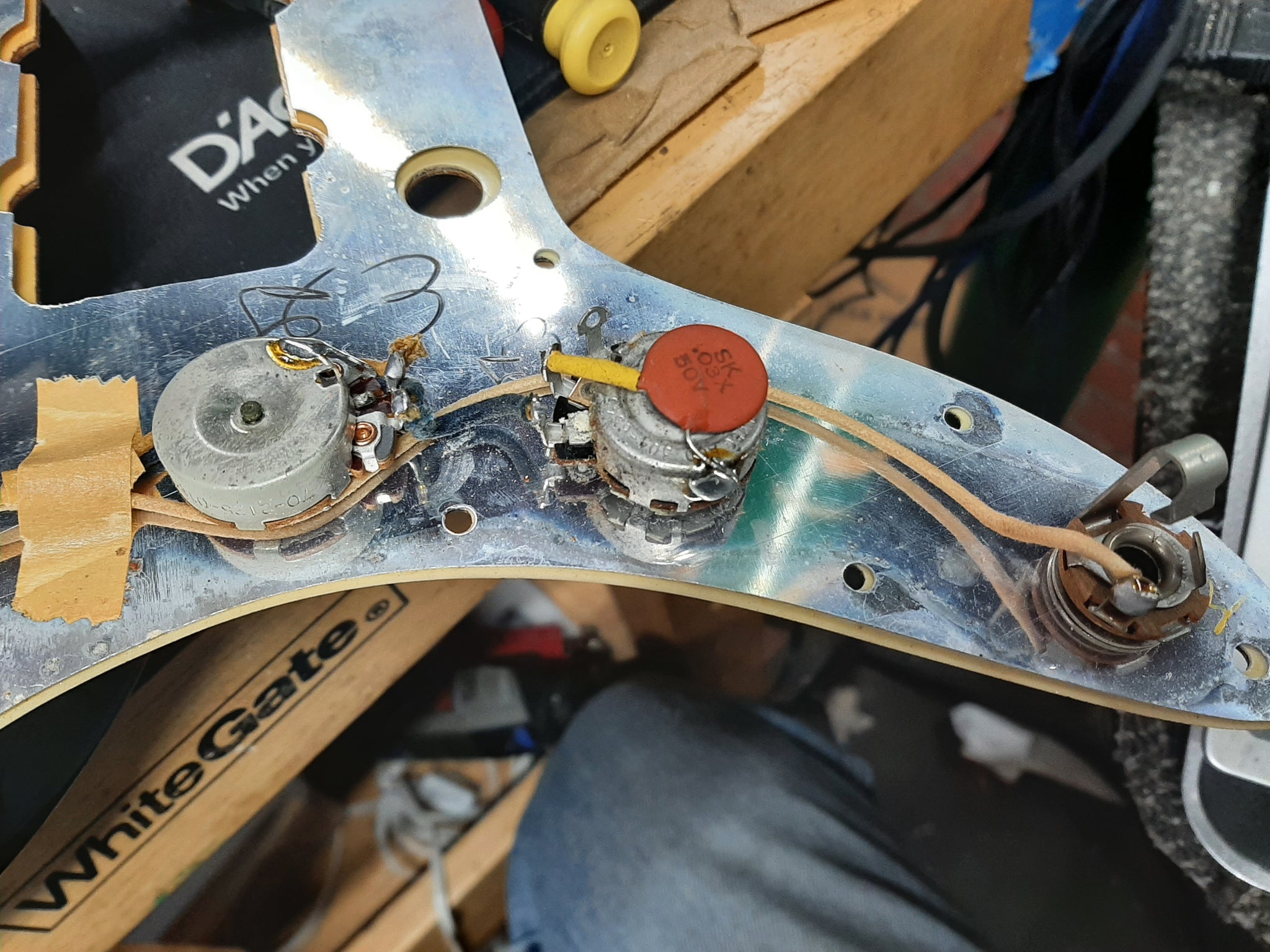

- Pot code: 304-6545: 45 Week, 1965
- Pot Code: 137-6451: 51 Week, 1964

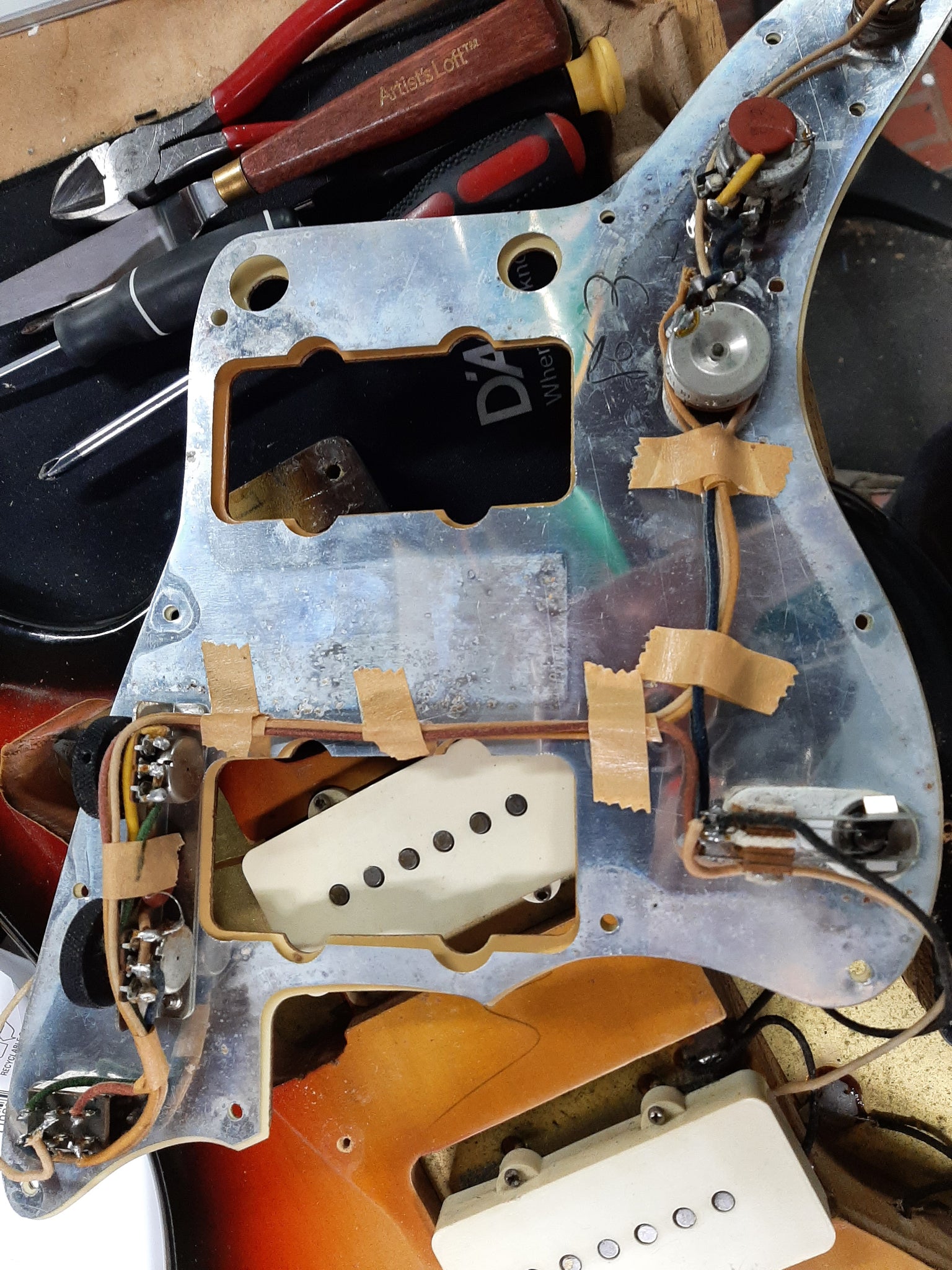

- Wiring appears period-correct and original
