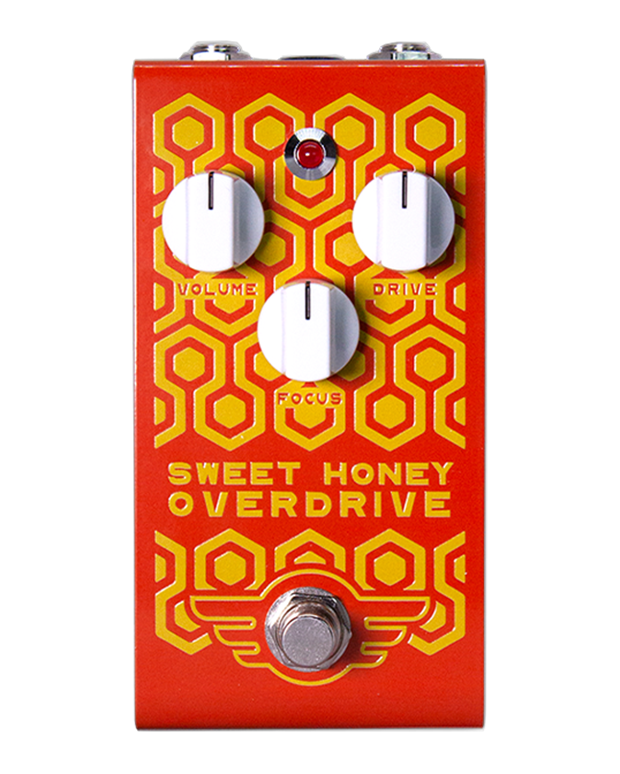

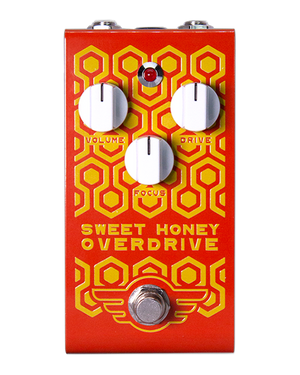

Mad Professor Sweet Honey Overdrive Handwired NEW
6430033090459
Return of the Handwired series!
The Sweet Honey Overdrive is a touch sensitive low gain overdrive pedal. It is designed to overdrive distorted amplifiers and give dynamically controlled light overdrive on clean sounds. With our unique Focus control you can adjust the feel and dynamics of the pedal as well as overall EQ. Distortion level is controlled by pick attack and pickup strength. Pick harder for more overdrive and play softer for cleaner tone.

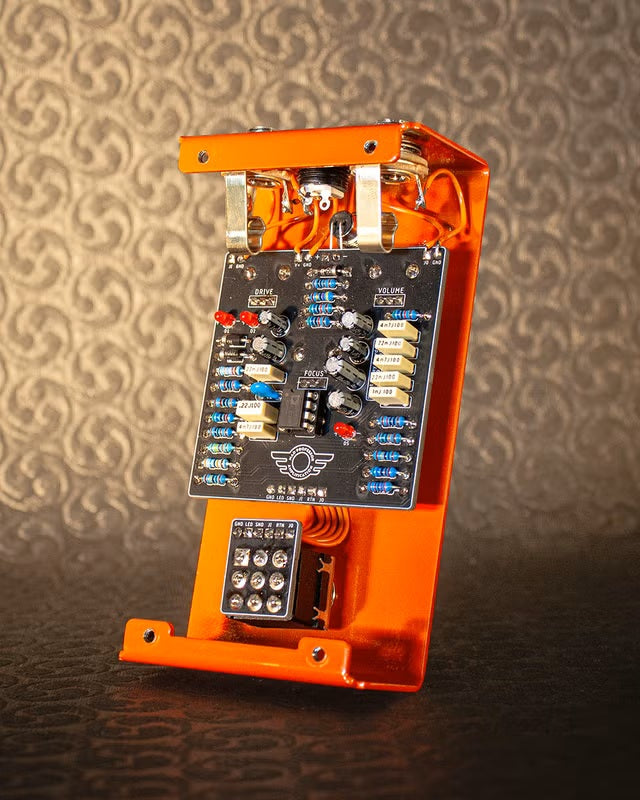

The new and improved Handwired series pedals feature quality through hole components, Alpha pots and switches and Switchcraft jacks all housed in a custom sheet metal enclosure. Pedals are also equipped with top mounted jacks. All Handwired series pedals are made in Finland.
CONTROLS:
VOLUME: Set the overall output level of the pedal.
DRIVE: Controls the amount of overdrive.
FOCUS: Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion.
TECHNICAL SPECIFICATIONS:
Current draw at 9VDC approx. 5mA
Input impedance - 260 K
Output impedance - 25 K
Voltage supply range - 7.5-18V
True bypass
CAUTION! Never operate the unit with its bottom removed or damage will most likely occur.
POWER REQUIREMENTS:
DC eliminator 2.1 mm plug center negative and positive sleeve.
The Sweet Honey Overdrive is protected against wrong DC eliminator polarity.
Use recommend voltage for best results.
WARRANTY:
Mad Professor handwired pedals come with a limited lifetime warranty.
Manufactured by Mad Professor Amplification Ltd
Handmade in Finland
